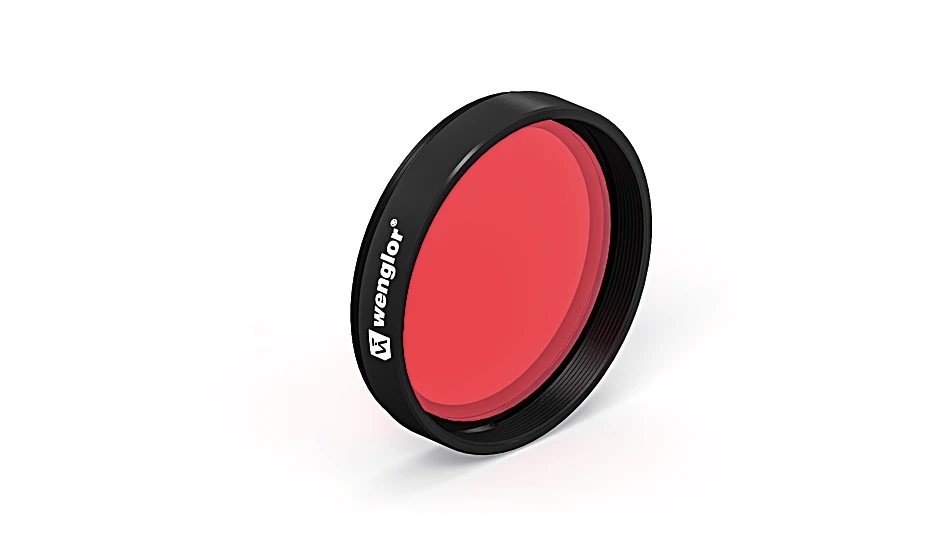

ZVZG211 Red Bandpass Filter for C mount lens
Red Bandpass Filter
In Stock
$296.62
per unit
Description
Bandpass filters for red light are recommended when using red illumination. With image processing applications that use red light, interfering ambient light is filtered out, making the application more robust.
Technical Data
Optical Data
| Usable wavelength range | 615 … 645 nm |
| Maximum transmission | ≥ 90 % |
| Half-value width FWHM | 60 nm |
| Tolerance | ± 10 nm |
Mechanical Data
| Mounting type, device-side | can be screwed |
| Material | Aluminum, painted Glass |
| Pane coating | dichroic, anti-reflective |
| Filter Screw Size | M34 × 0.5 mm |
| Temperature Range | -40 … 300 °C |
| Surface quality | 40/20 |
| Weight | 5 g |
General Data
| Packaging unit | 1 Piece |
