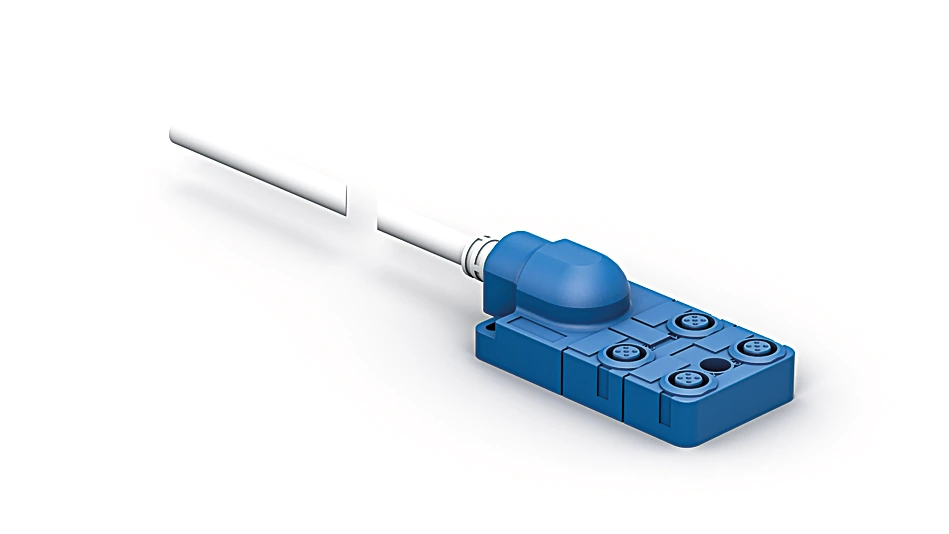

ZAA02R601 Connection Box for M12 × 1; 4-pin; 4 Ports
Connection Box
In Stock
$147.69
per unit
Applications: Sensors & I/O
Description
This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- High protection class IP67
Technical Data
Electrical Data
| Supply Voltage | 18 … 30.2 V |
Mechanical Data
| Connection 1 | Socket, 4 ports |
| Connection mode 1 | M12 × 1, 4-pin |
| Torque | M12: 0,6 Nm +0,1 Nm |
| Coding | A-coding |
| Cable length (L) | 10 m |
| Outer diameter (d) | 8.1 mm |
| Wire cross-section | 0.34 / 0.75 mm² |
| Display | LED |
| Degree of Protection | IP67 |
| Temperature Range | -20 … 70 °C |
| Housing Material | Plastic, TPU |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | PVC |
| Halogen-free | yes |
| Drag Chain Suitable | yes |
| Bending radius (fixed installation) | 12 × d |
| Bending radius (used in motion) | 12 × d |
| Travel speed (with 5 m horizontal travel distance) | 2 m/s |
| Acceleration | 5 m/s² |
| Bending cycles | > 2000000 |
| Weight | 1,178 g |
General Data
| Scope of delivery | 1 × connection box |
| Packaging unit | 1 Piece |
