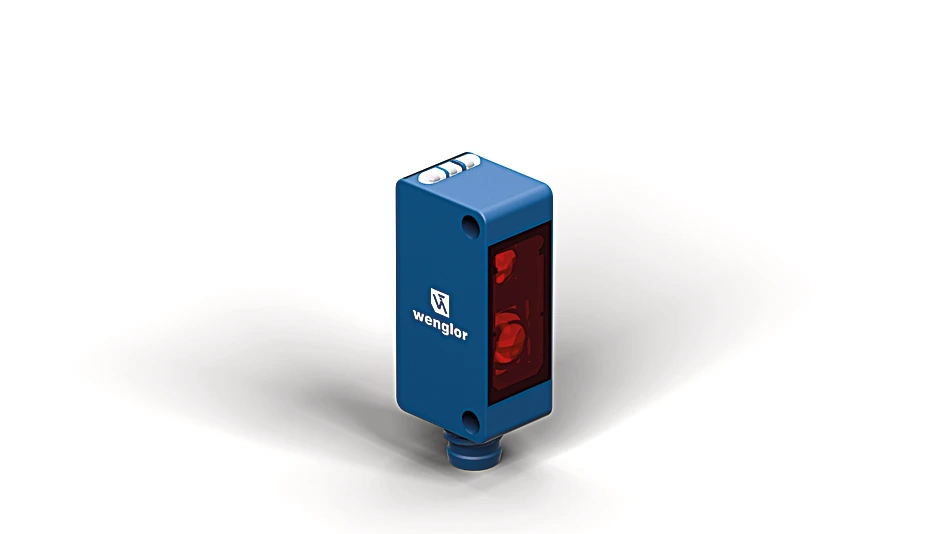

P1KH016 Reflex Sensor with Background Suppression
Reflex Sensor
Applications: Sensors & I/O
Description
The reflex sensor with background suppression works with red light according to the angle measurement principle. It has a IO-Link interface with a data storage function as well as additional configuration and diagnostic options. The interface can also be used to configure the sensors (PNP/NPN, NC/NO, switching distance, error output), as well as for reading out switching statuses and distance values. The teach-in function also provides another configuration option. Two independent switching outputs can be used, for instance, to monitor minimum and maximum values of distances or fill levels and stack heights.
Features at a Glance
- Data storage
- IO-Link 1.1
- Teach-in
- Two independent switching outputs
- High-end
Technical Data
Optical Data
| Range | 200 mm |
| Setting Range | 30 … 200 mm |
| Switching Hysteresis | < 10 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
Electrical Data
| Supply Voltage | 15 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 100 Hz |
| Switching Frequency (1 Switching Output) | 1,000 Hz |
| Response Time | 5 ms |
| Response time (1 switching output) | 0.5 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -40 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Data Storage | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS/PC |
| Degree of Protection | IP67 IP68 |
| Connection | M8 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 6 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,511.45 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NO | yes |
| IO-Link | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| Other parameters | Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Detection Range | 30 mm | 120 mm | 200 mm |
| Light Spot Diameter | 9 mm | 7 mm | 13 mm |
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
06 = Teach Button 5a = Switching Status Indicator, O1 6a = Switching Status Indicator, O2 |
