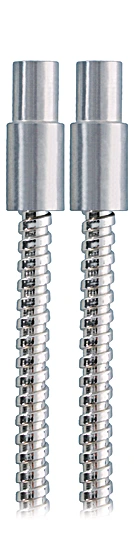

233-321-104 Glass Fiber-Optic Cable Through-Beam Mode
Glass Fiber-Optic Cable
In Stock
$430.38
per unit
Applications: Sensors & I/O
Description
Glass fiber-optic cables are extremely flexible and can be used in confined spaces. Metal-sheathed glass fiber-optic cables are the solution for high ambient temperatures in particular. The modular system enables different fiber diameters, sheaths and other options to be manufactured individually. The technical support team will be happy to answer any further questions you may have.
Features at a Glance
- A broad range of applications are possible due to the modular system design
- The fiber-optic cable is available and can be ordered.
Technical Data
Optical Data
| Fiber Bundle Diameter | 2.3 mm |
| Opening Angle | 68 ° |
| Fiber | Step Index |
| Fiber Diameter | 50 µm |
Mechanical Data
| Temperature Range | -25 … 180 °C |
| Bending Radius | 50 mm |
| Fiber-Optic Length L | 1 m |
| Jacket Material | Stainless Steel |
| Material End Sleeve | Stainless steel, V2A (1.4305 / 303) |
| End Sleeve No. | 21 |
| Light Emission | straight |
| Weight | 145 g |
General Data
| Scope of delivery | 2 × fiber-optic cables |
| Packaging unit | 1 Piece |
