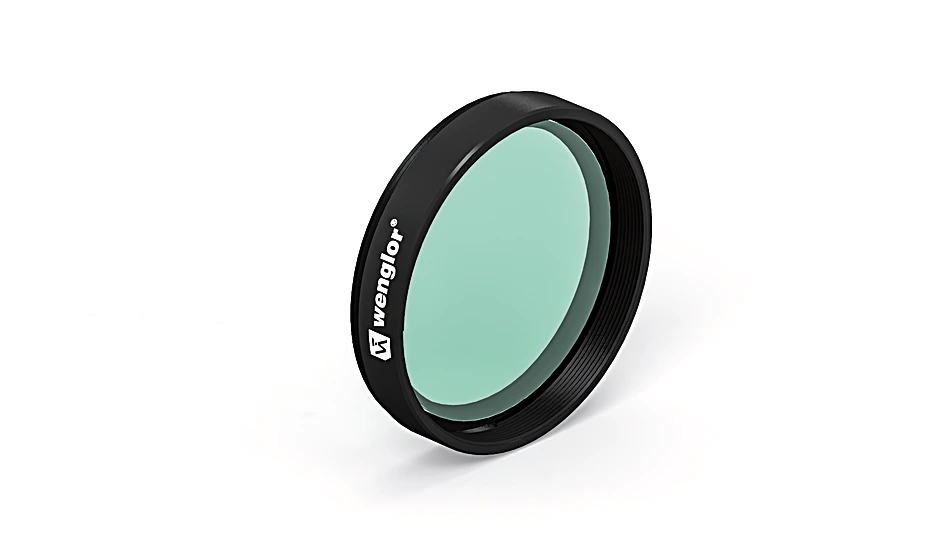

ZVZG208 Visible Bandpass Filter for C mount lens
Visible Bandpass Filter
In Stock
$296.62
per unit
Description
Bandpass filters for the visible area block all light, except visible wavelengths, without discoloring the image. They are recommended for use in applications with white light and color where there may be interference from IR and/or UV light.
Technical Data
Optical Data
| Usable wavelength range | 405 … 690 nm |
| Maximum transmission | ≥ 90 % |
| Half-value width FWHM | 300 nm |
| Tolerance | ± 10 nm |
Mechanical Data
| Mounting type, device-side | can be screwed |
| Material | Aluminum, painted Glass, borosilicate |
| Pane coating | dichroic, anti-reflective |
| Filter Screw Size | M34 × 0.5 mm |
| Temperature Range | -40 … 300 °C |
| Surface quality | 40/20 |
| Weight | 5 g |
General Data
| Packaging unit | 1 Piece |
