Description

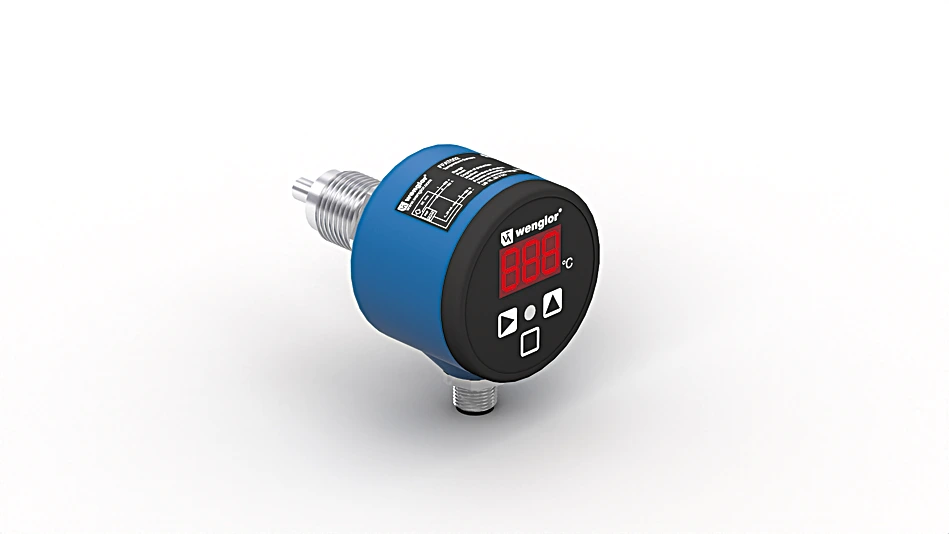

UniTemp temperature sensors measure the temperature of liquid or gaseous media and facilitate the temperature monitoring of processes. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Simple operation via the display
- Highly visible output indicator
- Temperature range: 0…200°C available
Technical Data
Sensor-specific data
| Temperature Measurement Range | 0 … 140 °C |
| Setting Range | 2 … 139 °C |
| Medium | Liquids, gases |
| Measuring error | ± 1 °C |
| Resolution | 1 °C |
| Switching Hysteresis | 2 °C |
| Response Time | 2 … 4 s |
Environmental conditions
| Temperature of medium | 0 … 140 °C |
| Ambient temperature | -20 … 80 °C |
| Pressure Resistance | 60 bar |
| EMC | DIN EN 61326-2-3 |
| Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 20 g (10…2000 Hz) |
Electrical Data
| Supply Voltage | 16 … 32 V DC |
| Current Consumption (Ub = 24 V) | 60 mA |
| Number of Switching Outputs | 1 |
| Switching Output/Switching Current | < 250 mA |
| Switching Output Voltage Drop | < 2 V |
| Analog Output | 4…20 mA |
| Signal source | Temperature |
| Current Output Load Resistance | < 500 Ohm |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Menu |
| Housing Material | Plastic, PBT Plastic, PC |
| Material Control Panel | Polyester |
| Material in contact with media | Stainless steel, V4A (1.4404 / 316L) Stainless steel, V4A (1.4435/316L) Rubber, FKM |
| Degree of Protection | IP67 * |
| Connection | M12 × 1; 4-pin |
| Process Connection | G 1/2″ |
| Process Connection Length (PCL) | 47 mm |
| Probe Length (PL) | 10 mm |
| Weight | 275 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,194.55 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| Analog Output | yes |
| PNP NO | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| Other parameters | Switching point |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
60 = display 20 = Enter key 22 = Up key 99 = Right button |
