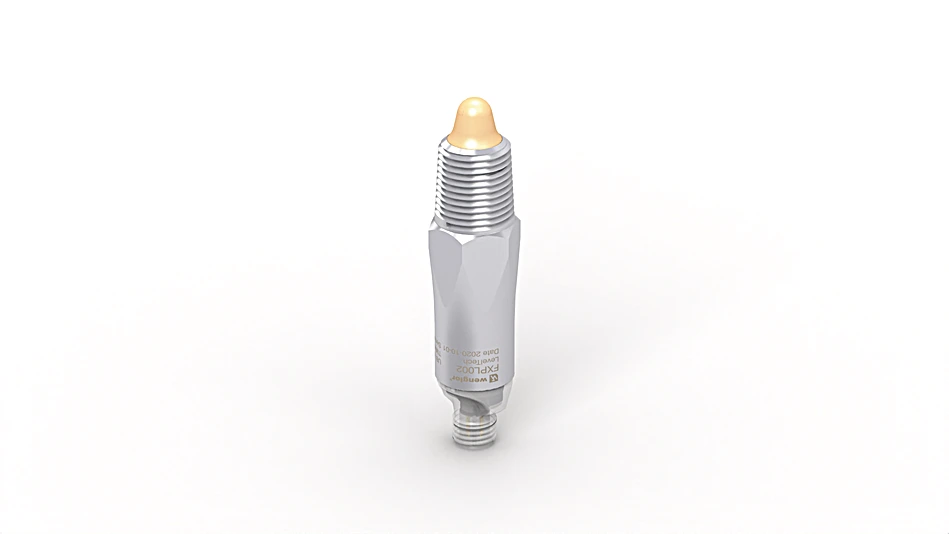

FXPL002 Fill-level Sensor with IO-Link
Fill-level sensor
Applications: Sensors & I/O
Description
LevelTech fill-level sensors work in accordance with the innovative frequency sweep principle. With the help of this functional principle, the sensors detect any desired medium on the basis of the measured resonant frequency. With their two adjustable switching outputs, the sensors are capable of differentiating between foam and liquid or two different media. Sensor parameters, as well as filter and output functions, can be individually configured via IO-Link. The stainless steel housing is FDA compliant and can be installed in the tightest of spaces thanks to its compact design. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Fill-level measurement in all media: liquid, pasty, sticky or solid
- Process optimization with IO-Link 1.1
- Quick sensor replacement with data storage
- Two adjustable switching outputs
- With status LEDs
Technical Data
Sensor-specific data
| Measuring principle | Frequency sweep |
| Measuring Range > DK*** | 1.5 |
| Medium | Liquids, granulate, powder |
| Response Time | 0.04 s |
Environmental conditions
| Media temperature TM (TU < 50 °C) | -40 … 115 °C** |
| Media temperature TM brief (TU < 50 °C, t < 1 h) | -40 … 130 °C |
| Ambient temperature | -40 … 85 °C |
| Storage temperature | -40 … 85 °C |
| Pressure Resistance | 100 bar |
| EMC | DIN EN 61326 * |
| Vibration resistance per DIN IEC 60068-2-6 | 1,6 mm p-p (2…25 Hz), 4 g (25…100 Hz) |
Electrical Data
| Supply Voltage | 8 … 36 V DC |
| Current Consumption (Ub = 24 V) | < 35 mA |
| Number of Switching Outputs | 2 |
| Power-up Time | < 3 s |
| Switching Output/Switching Current | 100 mA |
| Switching Output Voltage Drop | < 0.7 V |
| Signal source | Change of medium |
| Leakage Current | < 100 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Interface | IO-Link V1.1 |
Mechanical Data
| Setting Method | Teach-in/IO-Link |
| Housing Material | Stainless steel, V4A (1.4404/316L) Plastic, PC |
| Material in contact with media | Plastic, PEEK |
| Degree of Protection | IP67 IP69K |
| Connection | M12 × 1; 4-pin |
| Connector Plug Material | Polycarbonate |
| Process Connection | 1/2” NPT |
| Weight | 71 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 686 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Function
| Attenuation (adjustable) | 0 … 10 s |
| Selective fill-level measurement | yes |
Output
| IO-Link | yes |
| Push-Pull | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| Other parameters | 2 switching points |
| All other parameters can be found in the product documentation. |
