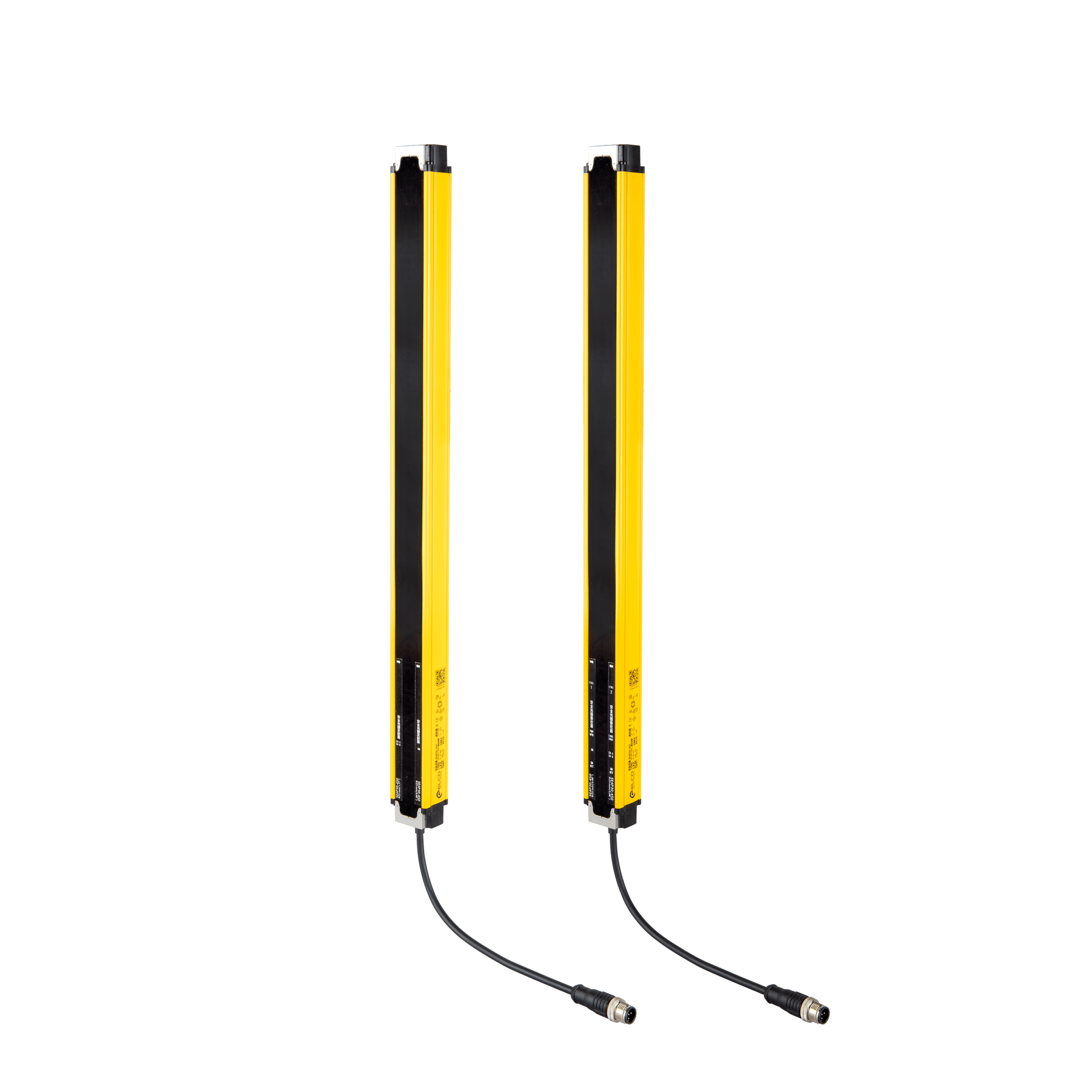

SE4P50-200 SE4 safety light curtain
SE4 safety light curtain, Type 4, Optical synchronization, Automatic reset, Output type PNP/NPN, Resolution 50 mm, Protective height 200 mm, Operating range 10 m, Cable 0.3 m with M12 connector plug.
In Stock
$563.40
per unit
Applications: Safety Systems
Technical Data
| Functions | Automatic reset |
| Resolution | 50 mm |
| Protective height | 200 mm |
| IP rating | IP65 |
| Supply voltage | 24 VDC |
| Product series | SE4 |
| Operating range | 10 m |
| Safety degree | SIL 3, TYPE 4 |
| Output type | 2xPNP/NPN OSSDs |
| Ambient temperature | -10 … +55 °C |
| Connection | Cable 0.3 m with M12 connector plug |
