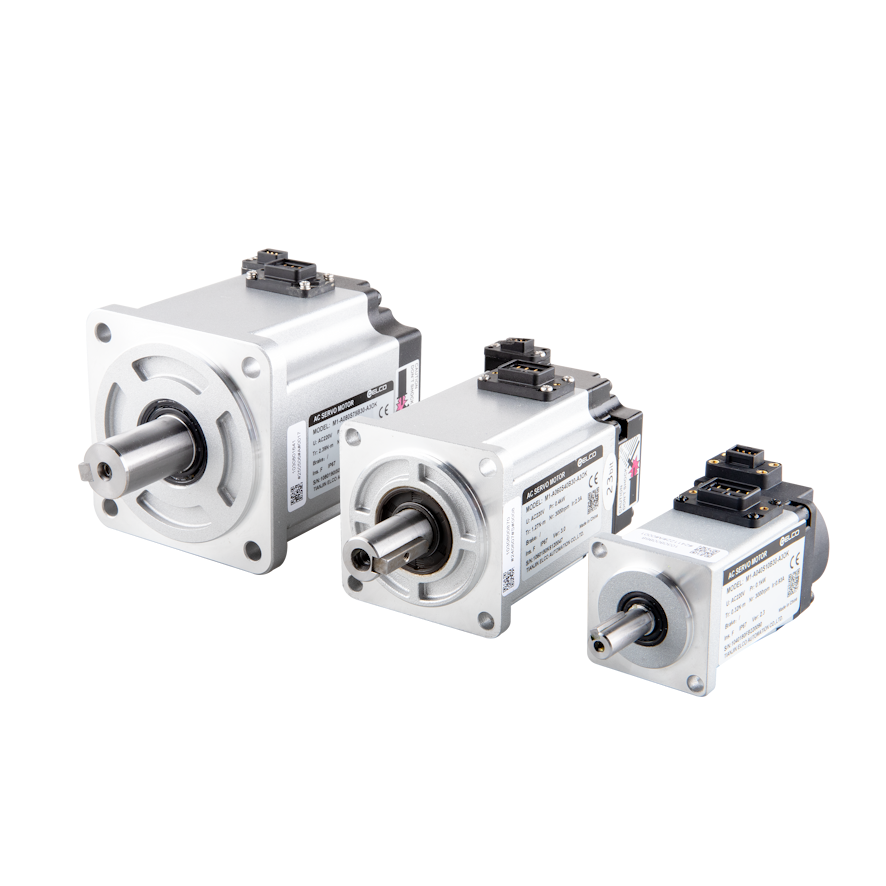

M1-A040S10B30-A3OK Servo motor
Servo motor, M1 Series, Standard type, 40 flange, Rated Power 100 W, Rated speed 3000 rpm, 23-bit magnetic encoder, Non-brake motor
In Stock
$249.69
per unit
Applications: Motion Control
Technical Data
| Rated speed | 3000 rpm |
| IP rating | IP65 |
| Shaft diameter | 8 mm |
| Rated power | 0.1 KW |
| Voltage | 220 V AC |
| Inertia range | <= 2.0 x 10⁻⁴ kg·m² |
| Flange | 40 |
| Encoder resolution | 23 bit optical encoder |
| Maximum rotational speed | 6000 rpm |
| Brake | No |
| Rated torque | <= 2.5 Nm |
| Maximum torque | <= 10 Nm |
