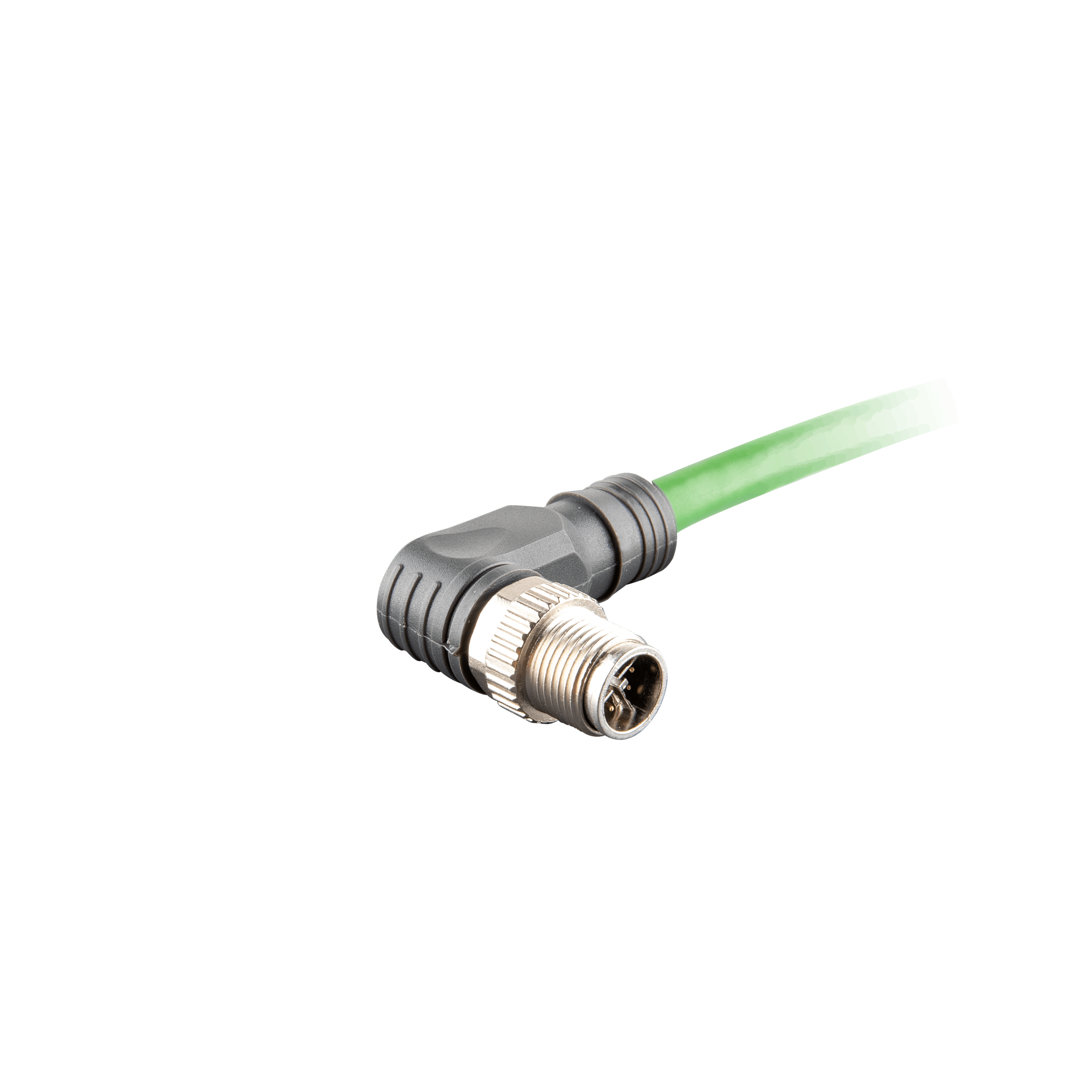

E1W0XB8604M050 Ethernet Cordset
Ethernet Cordset, Single-ended, M12 X-code 8-pin Angled Male,With PVC grey jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,5 m
In Stock
$55.06
per unit
Applications: Sensors & I/O
Technical Data
| Termination type | Single-end |
| Product type | Ethernet Cordset |
| Head 1 Type | M12 |
| Head 1 Coding | X-code |
| Head 1 Number of contacts | 8 |
| Head 1 Shape | Angled |
| Head 1 Gender | Male |
| Wire cross-section | 4 × 2 × 26 AWG |
| Rated voltage | 30 V |
| Rated current | 0.5 A |
| The head material | TPU |
| Nut/bolt material | Zinc die-casting |
| Coating contact material | Gold-plated copper |
| Material contact | TPU |
| Cable jacket material | PVC |
| Cable jacket color | grey |
| Wire insulation material | PE |
| Wire insulation color | WH/OG, OG, WH/GN, GN, WH/BN, BN, WH/BU, BU |
| Shielded/Unshielded | YES |
| Drag chain | Fixed installation |
| IP rating | IP67 |
| Cable length | 5.0 m |
