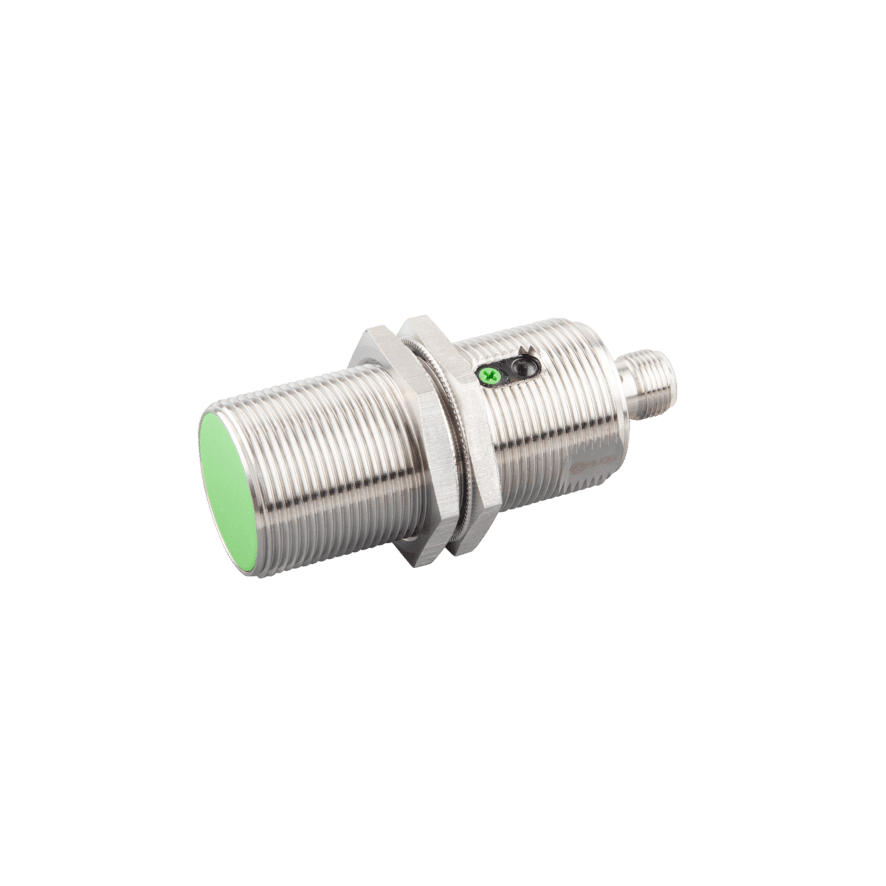

FC15-KM30-OP6L-Q12 Capacitive Sensor
Capacitive Sensor, Stainless steel threaded cylindrical housing KM30, Switching distance 15 mm, Flush, IP67, -25…70 °C, PNP NO, M12 3-pole
In Stock
$37.52
per unit
Applications: Sensors & I/O
Technical Data
| Output status | NO |
| Connection | M12, 4-pin |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -25 … +70 ℃ |
| Switching frequency | 10 Hz |
| Load current | ≤ 200 mA |
| Housing material | Stainless steel |
| IP rating | IP67 |
| Sensing surface material | PBT |
| Sensing range | 15 mm |
| Output type | PNP |
| Mounting | Flush |
| External dimensions | M30 x 1.5 |
| Product size | M30 x 81 mm |
