NC22-KM30-BP6L-Q12 Capacitive Sensor
Elco Automation | NC22-KM30-BP6L-Q12

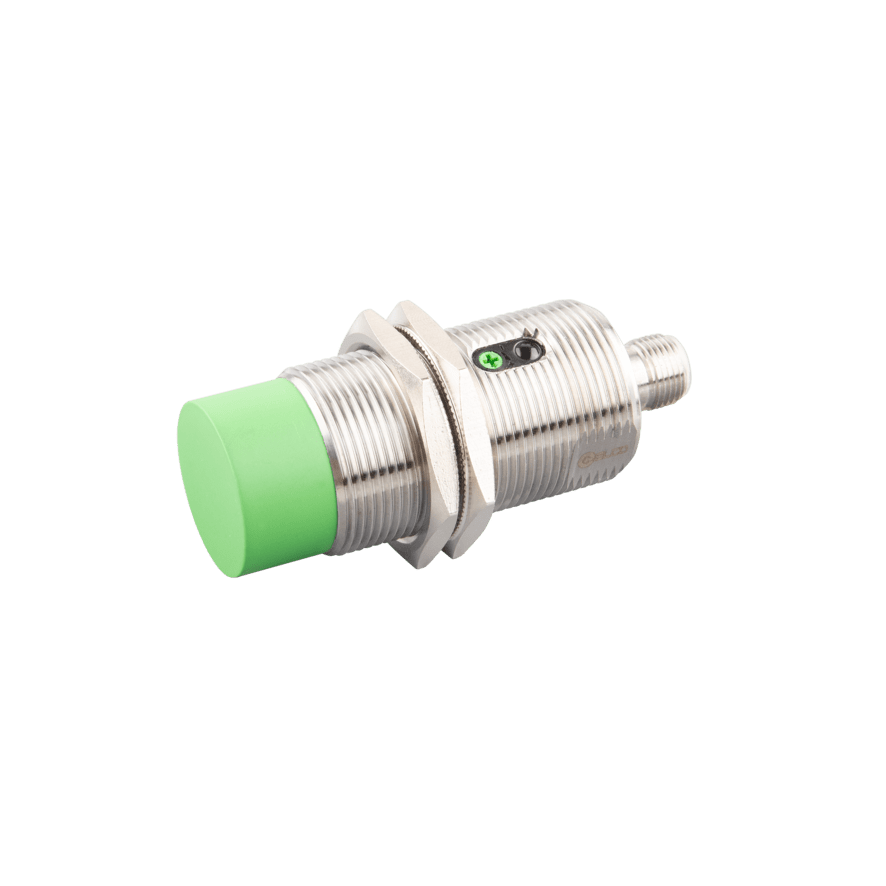

NC22-KM30-BP6L-Q12 Capacitive Sensor

Capacitive Sensor, Stainless steel threaded cylindrical housing KM30, Switching distance 22 mm, Non-flush, IP67, -25…70 °C, PNP NO+NC, M12 4-pole

In Stock
$39.37 per unit

Applications: Sensors & I/O

Technical Data

Mounting Non-flush
Sensing surface material PBT
Output type PNP
Output status NO + NC
Ambient temperature -25 … +70 ℃
IP rating IP67
Product size M30 x 81 mm
Switching frequency 10 Hz
Connection M12, 4-pin
Sensing range 22 mm
Load current ≤ 200 mA
External dimensions M30 x 1.5
Housing material Stainless steel
Supply voltage 10 … 30 V DC

Documentation

3D Drawings

  • Icon

    3D Drawing - ELCO_NC22-KM30-BP6L.STEP

    1 file(s) 10.14 MB
    Download
  • Icon

    3D Drawing - ELCO_NC22-KM30-BP6L-Q12.STEP

    1 file(s) 10.84 MB
    Download

Certificates & Compliance

  • Icon

    CE - ELCO_Cylindrical Capacitive_CE.pdf

    1 file(s) 424.13 KB
    Download

Datasheets

  • Icon

    Datasheet - ELCO_Capacitive Sensors-KM30_DataSheet_EN.pdf

    1 file(s) 278.01 KB
    Download
  • Icon

    Datasheet - ELCO_金属圆柱型电容_DataSheet_CN.pdf

    1 file(s) 14.46 MB
    Download

Technical Manuals

  • Icon

    Manual - ELCO_Capacitive Sensors Introduction_Manual_EN.pdf

    1 file(s) 6.14 MB
    Download

Related Products

C12.4-8 Sensor-Actuator Cordset
Elco Automation

C12.4-8 Sensor-Actuator Cordset

Sensor-Actuator Cordset, Single-ended, M12 A-code 4-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 8 m

$14.03

FI10-M30S-CN6L Inductive Sensor
Elco Automation

FI10-M30S-CN6L Inductive Sensor

Inductive Sensor, Short threaded cylindrical housing M30, Switching distance 10 mm, Flush, IP67, -25…70 °C, NPN NC, Cable 2 m

$36.13

LKHA-044UP-QM IO-Link Sensor Hub
Elco Automation

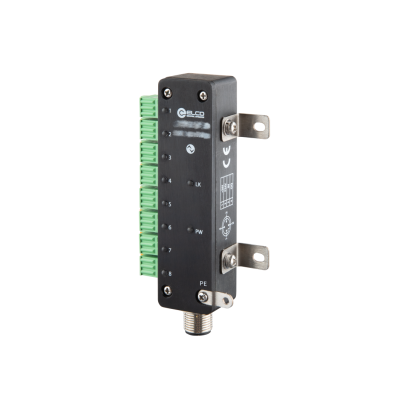

LKHA-044UP-QM IO-Link Sensor Hub
