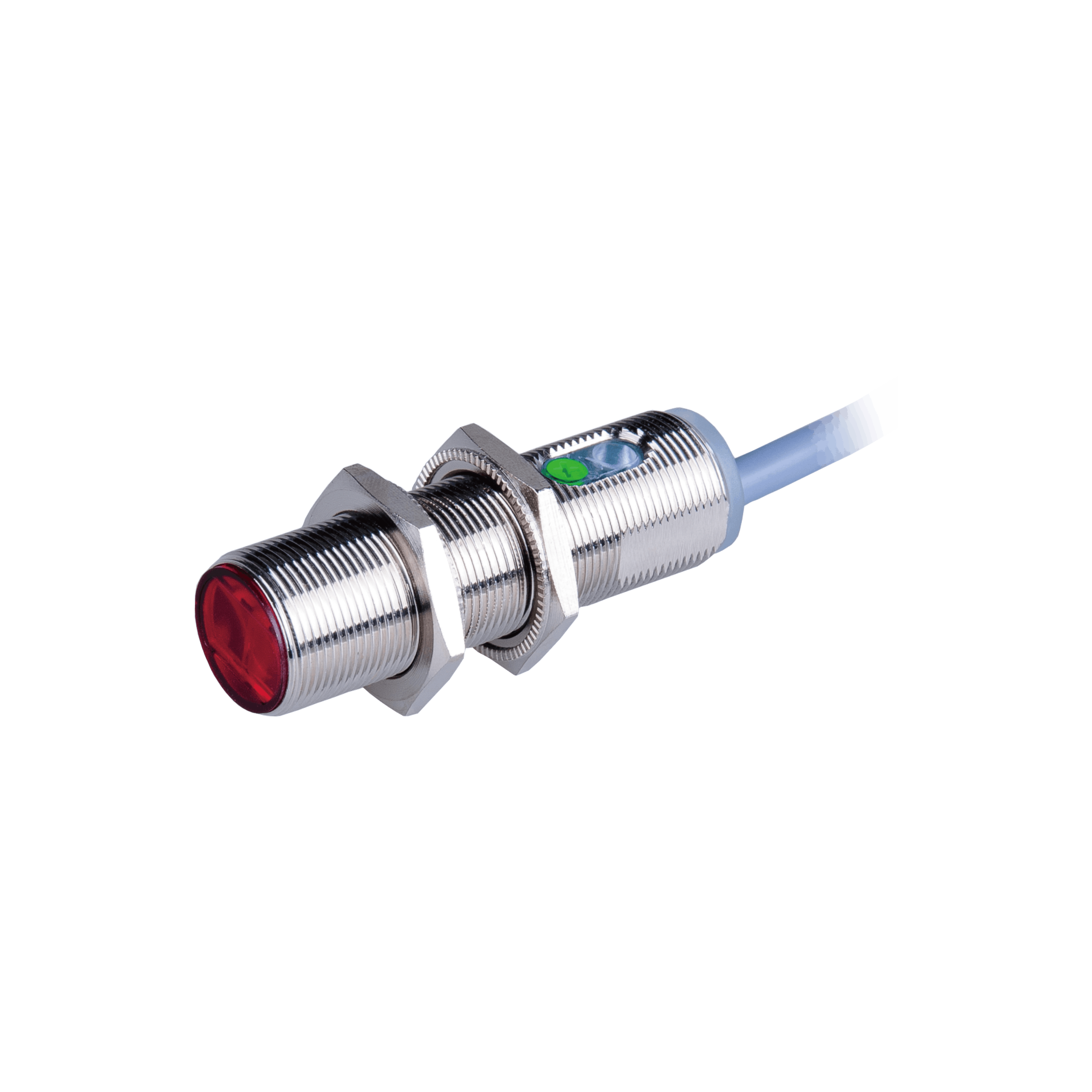

OM18-K200VP6 Photoelectric Sensor
Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, Cable 2 m
In Stock
$46.32
per unit
Applications: Sensors & I/O
Technical Data
| Detection method | Diffused |
| Connection type | 2 m, PVC |
| Output status | L.O + D.O |
| Supply voltage | 10 … 30 V DC |
| Sensing range | 200 mm |
| Light source | Infrared LED |
| Spot size | 50 mm @ 200 mm |
| Output type | PNP |
| Switching frequency | 100 Hz |
| IP rating | IP67 |
| Connection | Cable |
| Housing material | Nickel plated brass |
| Anti-ambient light | ≤ 5000 lux |
| Load current | ≤ 100 mA |
| Ambient temperature | -25 … +65 ℃ |
