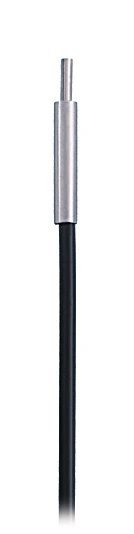

051-101-201 Glass Fiber-Optic Cable Reflex Mode
Glass Fiber-Optic Cable
In Stock
$186.92
per unit
Applications: Sensors & I/O
Description
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
Features at a Glance
- A broad range of applications are possible due to the modular system design
- Stock types deliverable at short notice
Technical Data
Optical Data
| Fiber Bundle Diameter | 0.5 mm |
| Range with Sensor Type U_88__ | 20 mm |
| Range with Sensor Type U_66__ | 10 mm |
| Range with Sensor Type U_55__ | 5 mm |
| Opening Angle | 68 ° |
| Fiber | Step Index |
| Fiber Diameter | 50 µm |
| Fiber Distribution | statistical mixture |
Mechanical Data
| Temperature Range | -25 … 80 °C |
| Bending Radius | 21 mm |
| Fiber-Optic Length L | 0.25 m |
| Jacket Material | PVC |
| Fiber Optic Material | Glass |
| Material End Sleeve | Stainless steel, V2A (1.4305 / 303) |
| End Sleeve No. | 1 |
| End sleeve shape | Straight with shoulder |
| Light Emission | straight |
| Weight | 8 g |
General Data
| Scope of delivery | 1 × fiber-optic cable |
