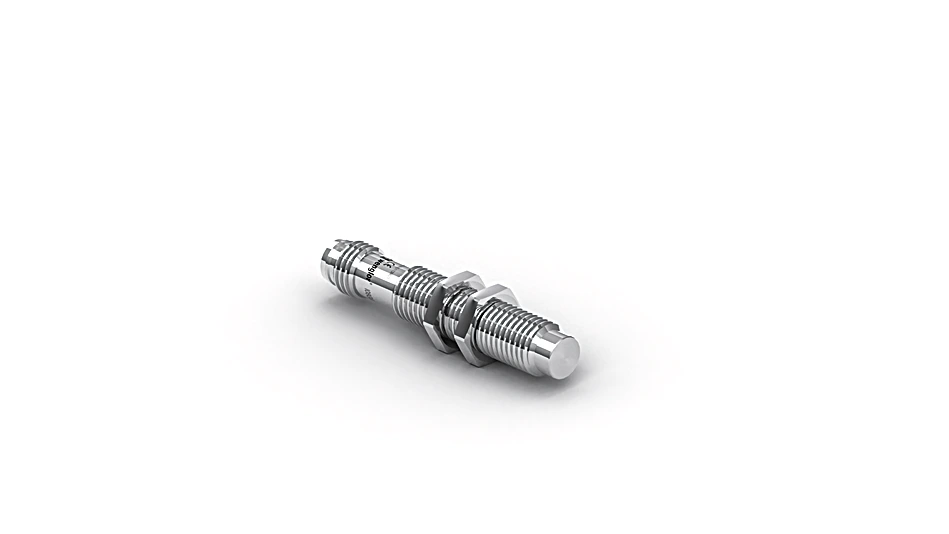

I08G004 Inductive Sensor with Full-Metal Housing
Inductive Sensor
In Stock
$115.00
per unit
Applications: Sensors & I/O
Description
The inductive sensors with full-metal housing are suitable for harsh ambient conditions and washdown areas thanks to the 316L stainless steel housing. The sensors with full-metal housing impress with their easy installation and reliable switching behavior. In addition to error-free operation of several sensors in a very small space, the new generation also provides the possibility of detecting system errors before it’s too late thanks to ASIC, IO-Link interface and wenglor weproTec.
Features at a Glance
- Stainless steel housing
- Easy sensor configuration using the IO-Link interface
- Minimal mounting clearance thanks to wenglor weproTec
- Innovative ASIC circuit technology
Technical Data
Inductive Data
| Switching Distance | 4 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al | 1,03/0,44/0,41 |
| Mounting | Non-flush |
| Mounting A/B/C/D in mm | 8/28/12/10 |
| Mounting A/B/C/D (V2A) in mm | 8/28/12/10 |
| Mounting B1 in mm | 0…6 |
| Installation B1 (V2A) in mm | 0…6 |
| Switching Hysteresis | < 10 % |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Switching Frequency | 529 Hz |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 70 °C |
| Switching Output Voltage Drop | < 1 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 100 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
Mechanical Data
| Housing Material | Stainless steel, V4A (1.4404 / 316L) |
| Sensing face | Stainless steel, V4A |
| Degree of Protection | IP67 IP68 IP69K |
| Connection | M8 × 1; 3-pin |
| Torque | max. 5 Nm |
| Pressure Resistance Sensor Area | 60 bar |
| EX II 3D Ex tc IIIC T90° Dc | yes |
| EX II 3G Ex ic IIC T5 Gc | yes |
| Weight | 7 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 3,706.54 a |
General Data
| Scope of delivery | 1 × ATEX information label 1 × sensor |
| Packaging unit | 1 Piece |
Output
| PNP NC | yes |
Adjustable parameters
| Output | NPN PNP |
| Circuit | NC NC/NO NO |
Standards and certificates
        |
