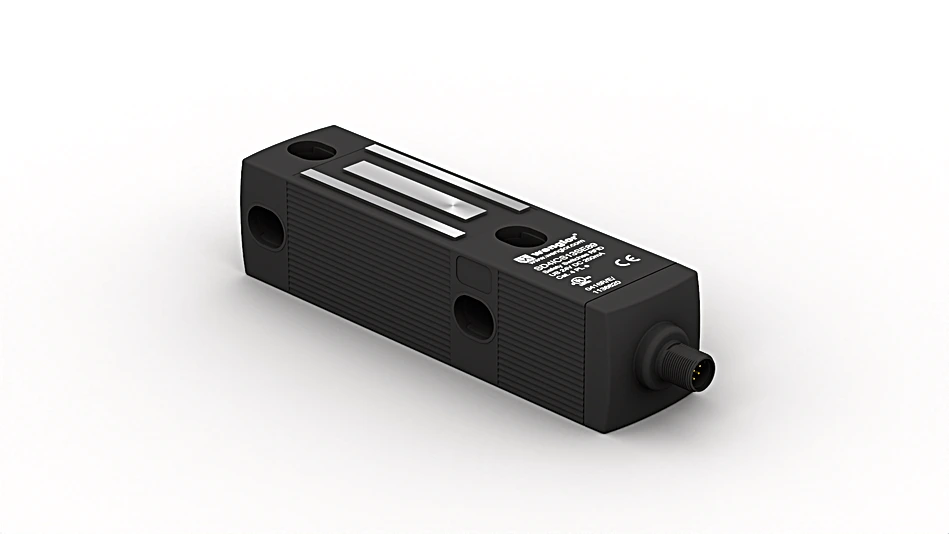

SD4ICS13SE89 Safety Switch with Lock Function Electromagnetic, Power to Lock Principle
Safety Switch with Lock Function
Applications: Safety Systems, Sensors & I/O
Description
This innovative safety switch with lock function is suitable for process protection thanks to its locking force. Furthermore, a safety level of category 4 PL e (EN ISO 13849-1) can be fulfilled with just one safety switch with lock function and is retained even when connected in series. Reaction time and risk time remain unchanged when connected in series as well. Extensive diagnosis functions enhance system availability and simplify installation and maintenance. Thanks to the electromagnetic operating principle, the safety switches with lock function work in a fully contactless fashion and are thus wear-resistant and easy to clean.
Features at a Glance
- Easy to clean
- Extensive diagnosis
- 500 N locking force
- Adjustable locking force
Technical Data
Electrical Data
| Sensor Type | Locking unit |
| Supply Voltage | 20.4 … 26.4 V DC |
| Response Time | < 150 ms |
| Risk time | < 150 ms |
| Temperature Range | -25 … 55 °C |
| Storage temperature | -25 … 85 °C |
| Safety Output | OSSD |
| Number of safety outputs (OSSDs) | 2 |
| PNP Safety Output/Switching Current | < 250 mA |
| Number of Signal Outputs | 1 |
| PNP signal output switching current | 50 mA |
| Short Circuit Protection | yes |
| Protection Class | II |
Mechanical Data
| Housing Material | Plastic |
| Degree of Protection | IP65 IP67 |
| Connection | M12 × 1; 8-pin |
| Latching Force, typical | 30 … 100 N |
| Weight | 814 g |
Safety-relevant Data
| Operating principle | Inductively coded |
| Coding | Standard |
| Performance Level (EN ISO 13849-1) | Cat. 4 PL e |
| PFHD | 3,50 × E-9 1/h |
| Safety Integrity Level (EN 61508) | SIL 3 |
| Safety Integrity Level (EN 62061) | SILCL 3 |
| PDDB (EN 60947-5-3) | yes |
| Locking Device | Power to lock principle |
| Locking Force F, guaranteed | 500 N |
| Locking Force Fmax, typical | 750 N |
General Data
| Applicable actuator | SD4ICA01 |
Function
| Series Connection | yes |
| Actuator monitored | yes |
| Electrical Detent Mechanism | yes |
Standards and certificates
    |
