EtherCat Drives from Applied Motion Products

What you (may have) missed in Anaheim, CA

Demos from the ATX West trade show earlier this month

StepSERVO Motors and Drives for EtherCAT Networks

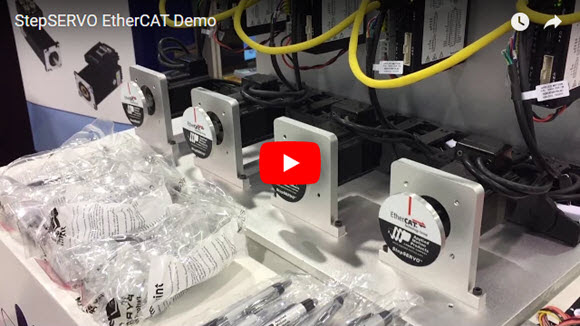

4 axes of SS-EC StepSERVO Drives and HT-SS StepSERVO Motors being controlled by a Beckhoff controller. The four axes are daisy-chain connected back to the controller with standard Ethernet cables and demonstrate the compatibility of these drives and motors on EtherCAT networks.

StepSERVO EtherCAT Demo

StepSERVO Integrated Motors for EtherNet/IP Networks

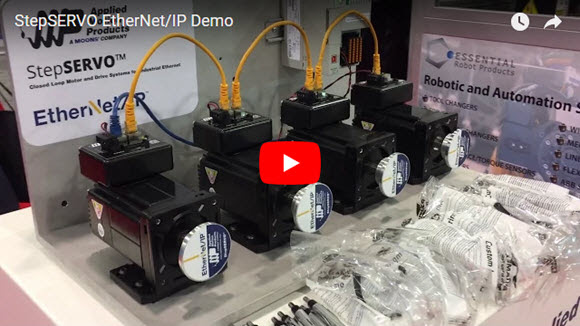

4 axes of TSM34 StepSERVO Integrated Motors performing point-to-point positioning and sharing data with a Rockwell controller. The four integrated motors are daisy-chain connected to the CompactLogix controller. Add-On Instructions for RSLogix facilitate programming the motion and parameter updates between the PLC and the axes.

StepSERVO EtherNet/IP Demo

SV200 and StepSERVO 3-Axis Demo

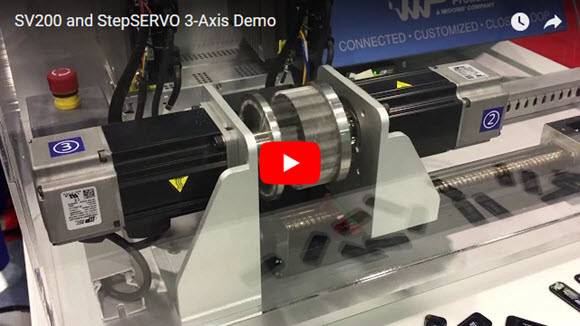

This 3-axis demo highlights the power of the Q Programming motion control software from AppliedMotion Products. The two rotary servo axes are synchronized through discrete I/O handshaking and the execution of mirrored Q programs stored in on-board memory. The linear TSM23 axis indexes one of the servo motors back and forth to highlight the synchronized motion of the two servo motors.

SV200 and StepSERVO 3-Axis Demo
