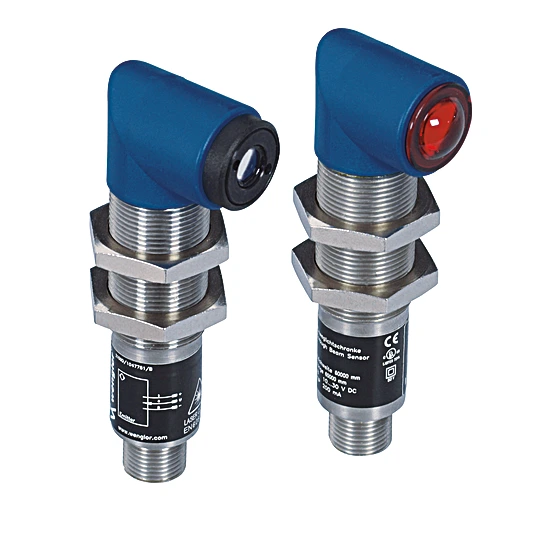

ZW6003 Through-Beam Sensor
Through-Beam Sensor
In Stock
$1,051.00
per unit
Applications: Sensors & I/O
Description
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Features at a Glance
- Adjustable focus
- Range: 60 m
Technical Data
Optical Data
| Range | 60,000 mm |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Beam Divergence | 0.5 mrad |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Reverse Polarity Protection | yes |
| Protection Class | III |
| FDA Accession Number | 0820361-000 |
Mechanical Data
| Housing Material | Stainless steel, V2A (1.4305 / 303) Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Glass |
| Weight | 143 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × laser warning sign 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Standards and certificates
      |

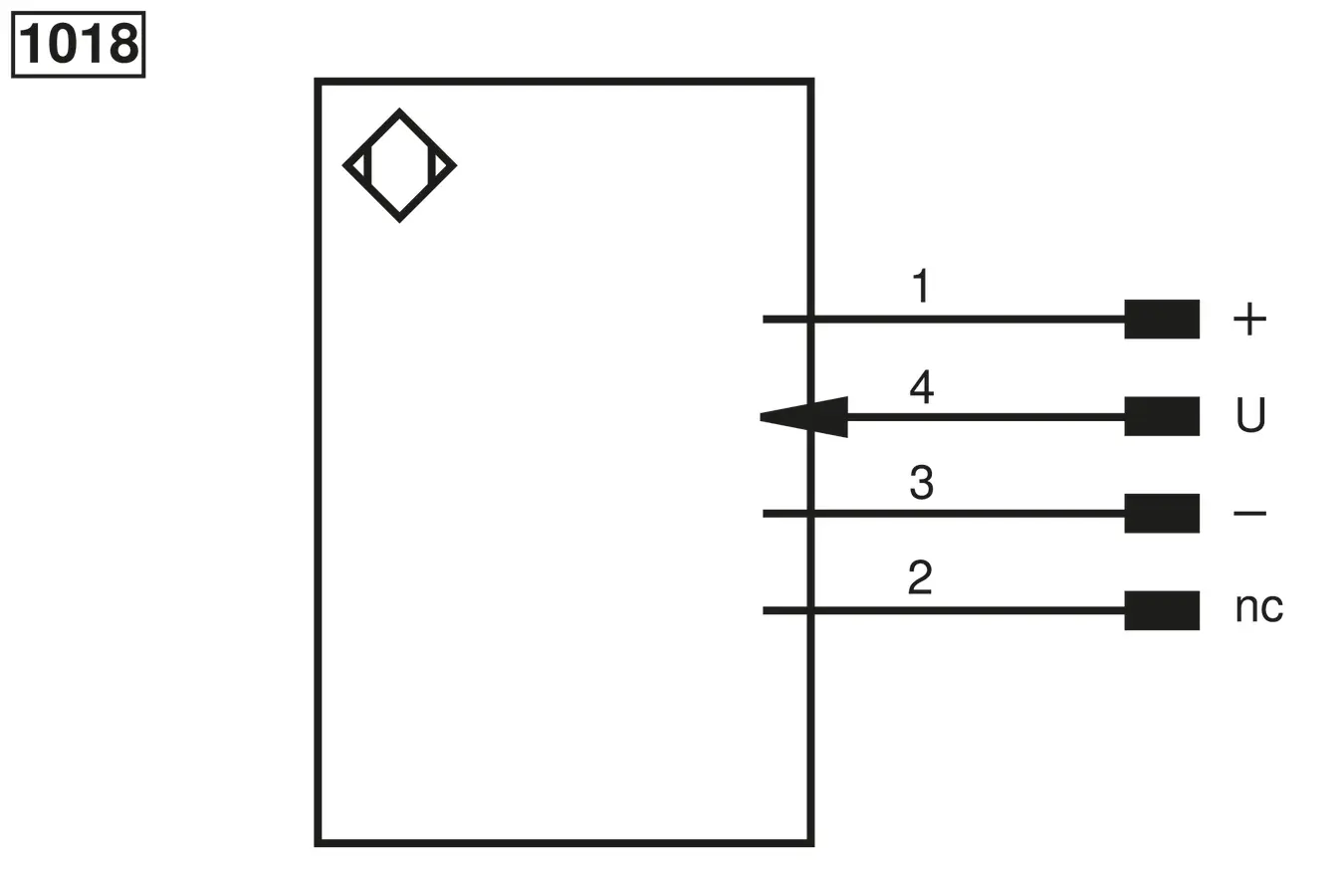

Connection Diagram
 |
