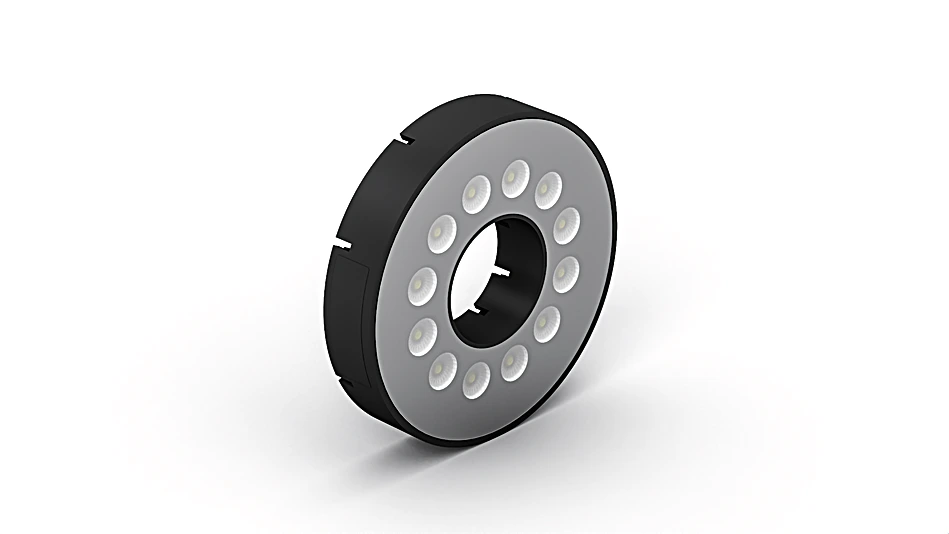

ZVZF100 Ring Light white light, 50 mm
Ring Light
In Stock
$2,452.15
per unit
Applications: Machine Vision
Description
wenglor ring lights are ideally suited for uniform illumination. Thanks to 360° annular floodlighting, shadows can be reduced and image quality can thus be improved. They can be operated in continuous mode, or synchronized to the camera in flash mode. The rugged housing with IP67 protection and standardized mounting together with Smart Cameras or Machine Vision Cameras simplify integration into existing systems and generate lots of space for new system concepts. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Continuous mode or strobe mode synchronized with the camera
- Homogeneous and very bright illumination without shadows
- Can be mounted together with Smart Camera or Machine Vision Camera
Technical Data
Optical Data
| Light Source | White Light |
| Color temperature | 5,000 K |
| Service Life (T = +25 °C) | 100,000 h |
| Risk Group (EN 62471) | 2 |
| Opening Angle | 33 ° |
Environmental conditions
| Temperature Range | -30 … 50 °C |
| Storage temperature | -30 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption Continuous Mode (Ub = 24 V) | < 700 mA |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | < 4,200 mA |
| Flash duration (max.) | 17 … 30,000 µs |
| Duty cycle (max.) | < 0,2 |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Aluminum, anodised |
| Degree of Protection | IP67 |
| UL Enclosure Type | 1 |
| Optic Cover | Plastic, PMMA |
| Connection | M12 × 1; 5-pin |
| Weight | 490 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,557.35 a |
Standards and certificates
     |
Illumination methods
|
|
Connection Diagram
 |
