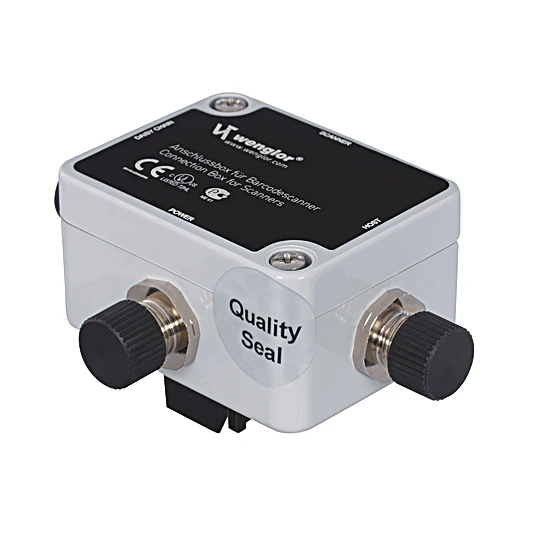

AB-0003-1 Connection Box for 1D-/2D- and Barcode-Scanners
Connection Box
In Stock
$393.23
per unit
Applications: Sensors & I/O
Description
This connection box offers an universal solution for a smooth scanner operation. It combines voltage supply and NPN-PNP converter in one. Quickly and easily it can be connected to PC or laptop for configuration.
Features at a Glance
- NPN-PNP conversion of the scanner I/Os
- RS-232/422/485 interfaces to host, to busgateway or for daisy chain of the scanners
- Voltage supply for scanners (5 V)
- Easy handling
Technical Data
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Voltage Supply for Scanners | 5 V |
| Current Consumption (Ub = 24 V) | 500 mA |
| Number of Switching Outputs | 3 |
| PNP Switching Output/Switching Current | 400 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
Mechanical Data
| Degree of Protection | IP65 |
| Temperature Range | -25 … 60 °C |
| Housing Material | Plastic, ABS |
| Connection Mode Scanner | SubD 15 S |
| Connection Mode Supply Voltage, I/O | M12 × 1; 8-pin |
| Connection Bus Side | M12 × 1; 8-pin |
| DIN-Rail mounting | 35 mm |
| Weight | 174 g |
General Data
| Packaging unit | 1 Piece |
Output
| PNP NO/NC switchable | yes |
Standards and certificates
    |

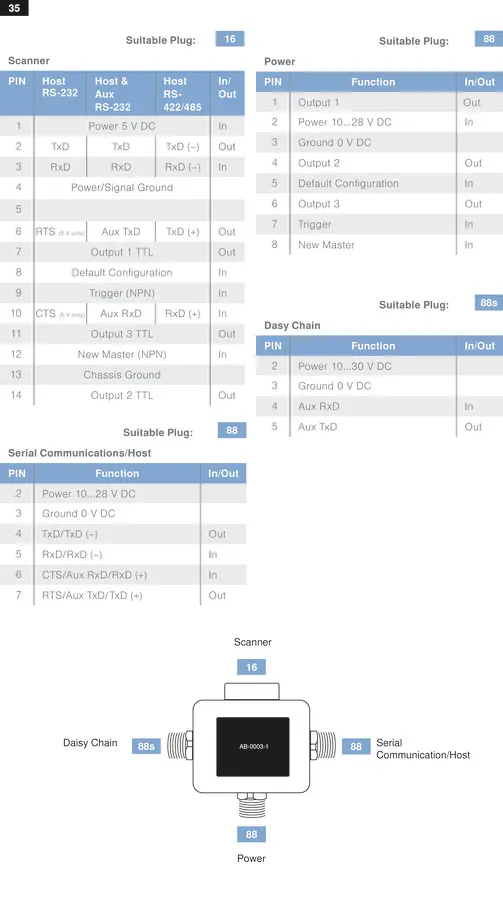

Connection Table
 |
Complementary Products
|
