Wenglor | ZSV-02-01

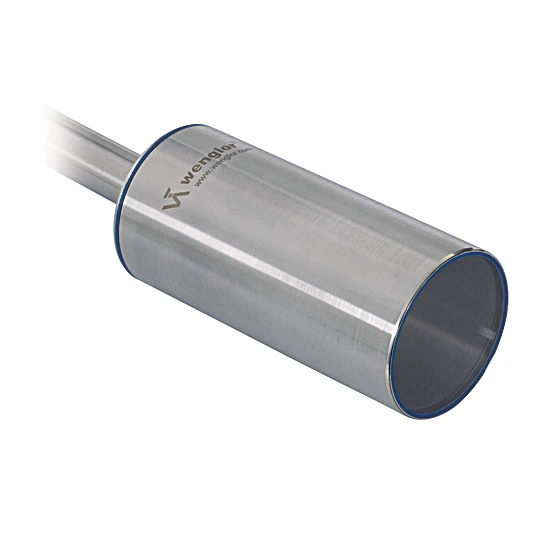

ZSV-02-01 Protective Housing

Protective Housing

In Stock
$1,010.85 per unit

Description

When combined with the protective housing, numerous wenglor products are suitable for cleaning-intensive environments, such as vision sensors, OCR readers, illumination, scanners, color sensors, luminescence sensors, print mark readers, and reflex sensors for measuring tasks or contrast detection. In addition to a high degree of protection, the InoxSens protective housing also offers optimized heat dissipation.

Features at a Glance

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Resistant to cleaning agents
  • Integrates time tested wenglor products

Technical Data

Mechanical Data

Material Stainless steel, V4A (1.4404 / 316L)
Silicone (FDA)
Optic Cover Plastic, PMMA (FDA)
Degree of Protection IP68
IP69K
Mounting type, device-side Mounting Tube
Weight 532 g

General Data

Packaging unit 1 Piece

Standards and certificates

Examples of Installation

Complementary Products

  • Mounting Bracket ZMW0P0001
  • Mounting Bracket ZMWFI0001
  • Mounting Bracket ZMW0M0001

Documentation

CAD data

Datasheets

Operating instructions

Product certificates

System solution
