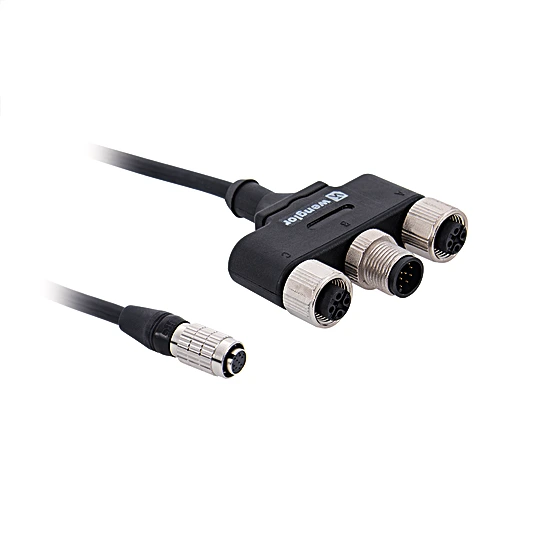

ZDMG001 Connection Cable M12 × 1; Y distributor
Connection Cable
In Stock
$329.85
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Screened
Technical Data
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | Hirose HR25, 8-pin |
| Connection 2 | Plug, straight Socket, straight |
| Connection mode 2 | M12 × 1, 12-pin M12 × 1, 4-pin |
| Coding | A-coding |
| Cable length (L) | 300 mm |
| Outer diameter (d) | 4.9 mm |
| Wire cross-section | 0.1 mm² |
| Temperature Range | -25 … 85 °C |
| Cable Jacket Material | Plastic, PVC |
| Screened | yes |
| Full Encapsulation | yes |
| Weight | 63 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Connection Diagram
 |
