363-372-104 Fiber-Optic Cable Band for fiber-optic amplifiers

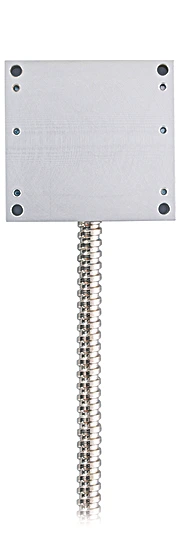

Fiber-Optic Cable Band
In Stock
$1,128.46
per unit
Applications: Sensors & I/O
Description
Glass fiber optic cable curtains function in accordance with the through-beam sensor principle. The fibers are arranged in a single line, thus creating a luminous row. If these fiber optic cable curtains are used in combination with an analog universal diffuse light sensor (UF22MV3, UF55MV3), the length of the slot corresponds to the analog range. If a universal diffuse light sensor with switching output is utilized (UF88PA), the switching point can be adjusted so that the output is switched when the light slot is obstructed to a defined extent.
Features at a Glance
- For measuring tasks
- Resistant to high temperature
- Variable light emitting slot
Technical Data
Optical Data
| Fiber Bundle Diameter | 3.6 mm |
| Linearity | < 5 % |
| Range with Sensor Type UF55MV3 | 130 … 600 mm |
| Range with Sensor Type UF22MV3 | 50 … 250 mm |
| Range with Sensor Type U_55__ | 1,264 mm |
| Range with Sensor Type U_66__ | 1,560 mm |
| Range with Sensor Type U_87__ | 1,560 mm |
| Range with Sensor Type U_88__ | 1,560 mm |
| Opening Angle | 68 ° |
| Fiber | Step Index |
| Fiber Diameter | 50 µm |
| Fiber Distribution | statistical mixture |
Mechanical Data
| Temperature Range | -25 … 180 °C |
| Bending Radius | 60 mm |
| Fiber-Optic Length L | 1 m |
| Jacket Material | Stainless steel, V2A (1.4301 / 304) |
| Material End Sleeve | Aluminum |
| End Sleeve No. | 72 |
| Weight | 263 g |
General Data
| Scope of delivery | 1 × fiber-optic cable band 1 × UEM30ME-01 sleeve nut |
