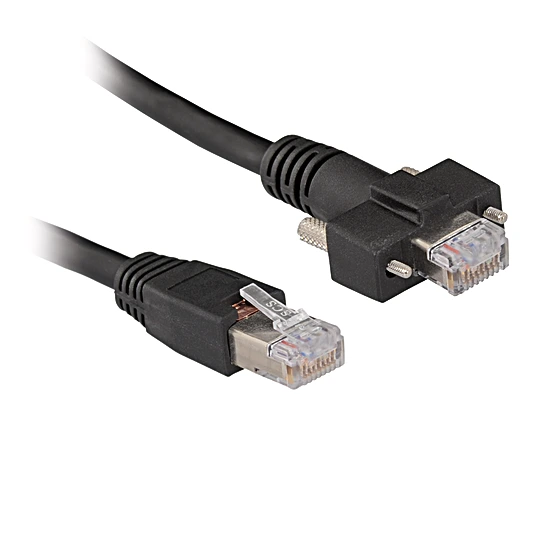

ZAV47V501 Connection Cable RJ45 8-pin; Horizontal RJ45 8-pin with Screws
Connection Cable
In Stock
$248.62
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- PVC, straight
Technical Data
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | RJ45, 8-pin |
| Connection 2 | Plug, straight |
| Connection mode 2 | RJ45, 8-pin |
| Cable length (L) | 5 m |
| Outer diameter (d) | 6.2 mm |
| Wire cross-section | 0.14 mm² |
| Temperature Range | 0 … 70 °C |
| Cable Jacket Material | Plastic, PVC |
| Category | CAT 6A |
| Bending radius (fixed installation) | > 10 × d |
| Weight | 231 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
