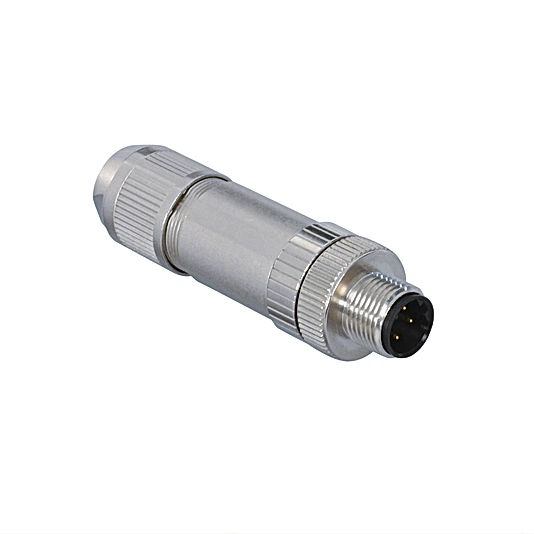

ZAT51NN01 Connector Plug M12 × 1; 4-pin, D-coding
Connector Plug
In Stock
$54.46
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- D-coding
- Plug M12 × 1, straight
Technical Data
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | M12 × 1, 4-pin, D-cod. |
| Torque | M12: 0,4 Nm |
| Coding | D-coding |
| Outer diameter (d) | 4 … 8 mm |
| Wire cross-section | 0.14 … 0.34 mm² |
| Assembling | Insulation displacement connector (IDC) |
| Degree of Protection | IP67 |
| Temperature Range | -20 … 80 °C |
| Material Sleeve Nut | Brass, nickel-plated |
| Category | CAT 5 |
| Screened | yes |
| Weight | 45 g |
General Data
| Scope of delivery | 1 × connector plug |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
