ZAS74V501 Connection Line SUB D, 15-pin
Connection Line
In Stock
$163.38
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- 1:1 occupied
- PVC, straight
Technical Data
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | SUB D, 15-pin |
| Connection 2 | stripped |
| Cable length (L) | 5 m |
| Outer diameter (d) | 6.9 mm |
| Wire cross-section | 0.14 mm² |
| Cable Jacket Material | Plastic, PVC |
| Material Wire Insulation | Plastic, PVC |
| Screened | yes |
| Weight | 402 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |

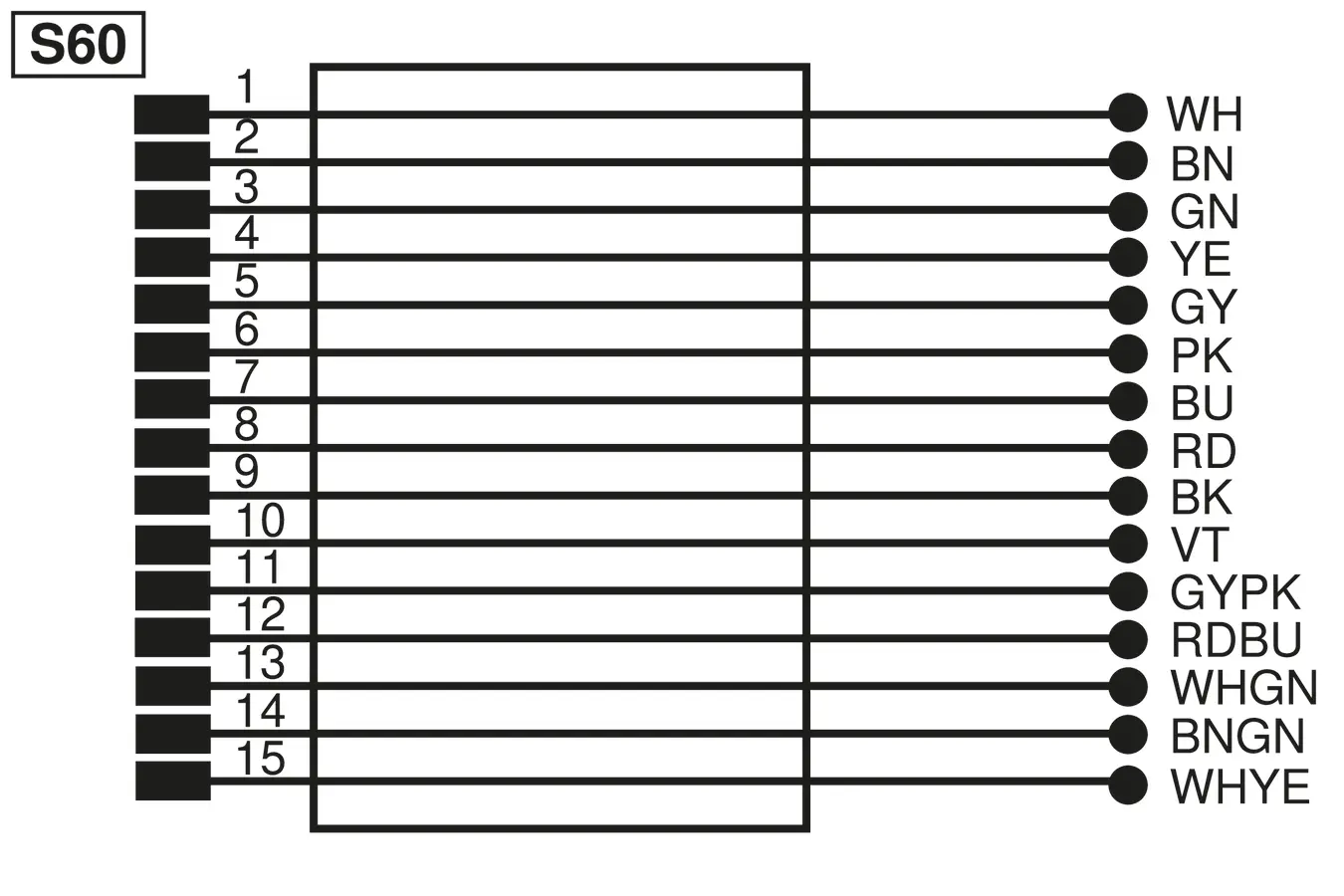

Pin assignment
 |
Connection Diagram
 |
