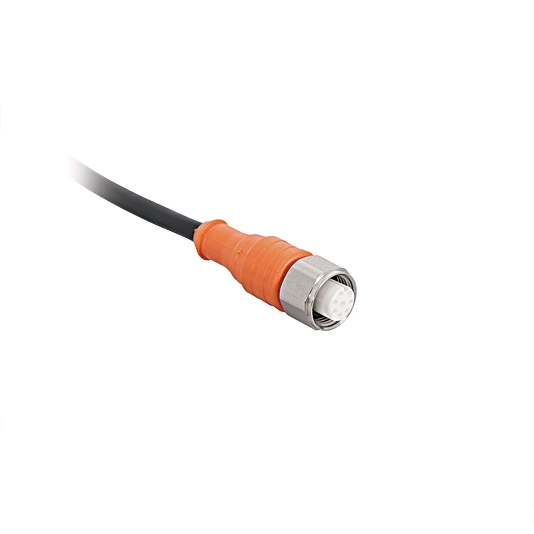

ZC7L001 Connection Line M12 × 1; 8-pin
Connection Line
In Stock
$64.98
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- PVC, straight
- Protection mode IP69K
Technical Data
Electrical Data
| Supply Voltage | ≤ 36 V AC/DC |
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | M12 × 1, 8-pin |
| Connection 2 | stripped |
| Torque | M12: 0,7 Nm |
| Coding | A-coding |
| Cable length (L) | 10 m |
| Outer diameter (d) | 5 mm |
| Wire cross-section | 0.14 mm² |
| Degree of Protection | IP67 IP69K |
| Temperature Range | -25 … 70 °C |
| Cable Jacket Material | PVC |
| Material Wire Insulation | PVC |
| Material Sleeve Nut | Stainless Steel |
| Screened | no |
| Weight | 350 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
