Z90E002 Mounting for reflectors with M3 mounting holes
Mounting
In Stock
$8.50
per unit
Description
The mounting is suitable for direct mounting on the mounting profile. The slot nuts are inserted into the T-slot, and the sensor or reflector is screwed on with oval head screws.
Features at a Glance
- Especially suitable for RE6210BM

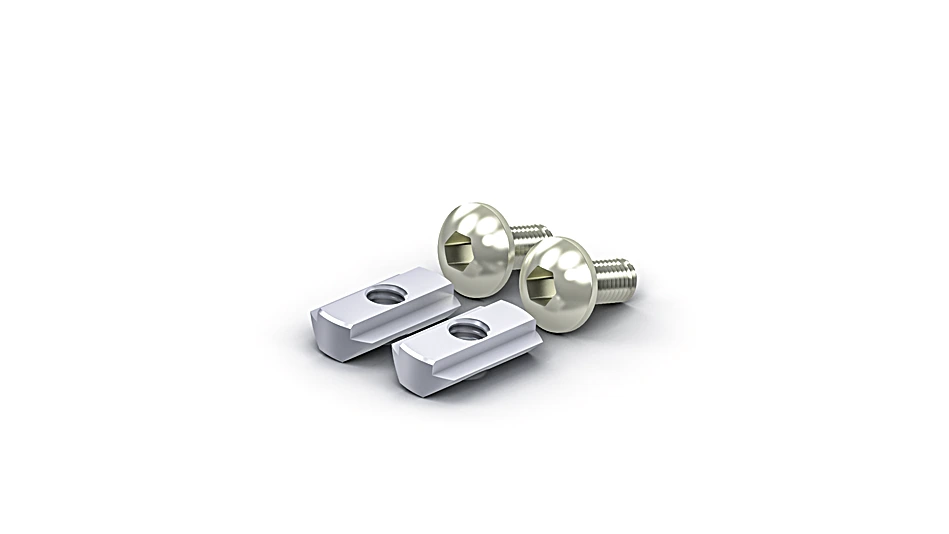

- Included: 2 × M3 × 4 mm screws, 2 × M3 spring washers, 2 × washers, 2 × M3 nuts
- T-slot nuts can be inserted into the T-slot of the ZBPWx0x mounting profiles
Technical Data
Mechanical Data
| Thread | M3 |
| Length | 4 mm |
| Mounting type, device-side | Screwable with slot nut |
| Mounting type, system-side | Mounting profile |
| Material | Stainless Steel |
| For edge length | 10 × 10 mm |
| Weight | 2 g |
General Data
| Scope of delivery | 2 × slot nuts; 2 × screws (M3×14) 2 × M3 screws × 4 mm |
| Packaging unit | 1 Piece |
| Use | For mounting profile for Reflectors for mounting bracket |
Standards and certificates
 |
Contour types
  |
