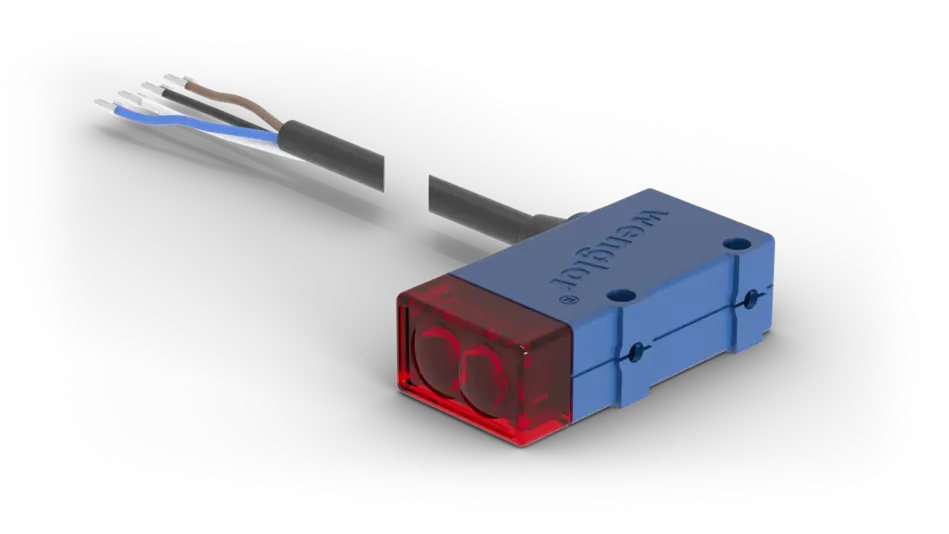

YM22PCTS777-P24 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$1,197.69
per unit
Applications: Sensors & I/O
Description
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Large detection range
- Good black & white characteristics
- High switching frequency
- Teach-in, external teach-in, RS-232 interface
Technical Data
Optical Data
| Range | 200 mm |
| Setting Range | 35 … 200 mm |
| Switching Hysteresis | < 10 % |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 1 mm |
| at a Distance of | 120 mm |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 600 Hz |
| Response Time | 833 µs |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | HT, VT |
| Protection Class | III |
| FDA Accession Number | 0820397-000 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | Cable; 4-wire |
| Cable length (L) | 6 m |
| Wire cross-section | 0.34 mm² |
| Weight | 297 g |
General Data
| Scope of delivery | 1 × operating instructions 1 × BEF-SET-02 mounting set 1 × initial start-up instructions 1 × laser warning sign 1 × sensor |
Output
| PNP NO | yes |
| RS-232 with Adapterbox | yes |
| External teach-in input | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
30 = Switching Status/Contamination Warning |
