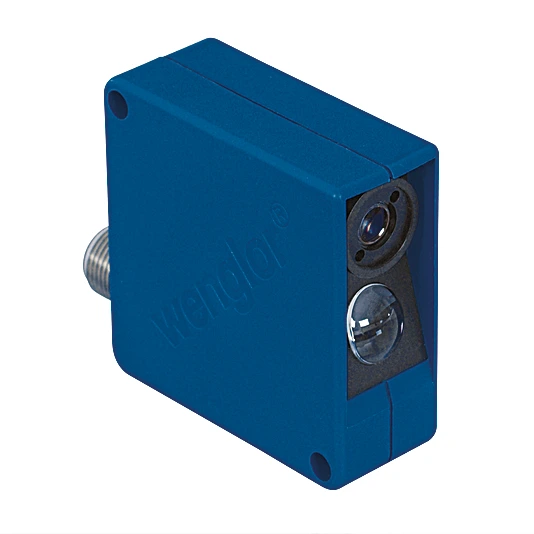

Description
These sensors are especially well suited for high speed recognition of contrast differences.
Features at a Glance
- Light spot can be focused
- Switching frequency: 20 kHz
- Adjustable time delay
Technical Data
Optical Data
| Range | 100 mm |
| Setting Range | 60 … 100 mm |
| Switching Hysteresis (Lateral Approach) | < 50 µm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 0.8 mm |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 20 kHz |
| Response Time | 25 µs |
| Off-Delay | 0 … 200 ms |
| Temperature Drift | < 1 % |
| Temperature Range | -10 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| FDA Accession Number | 0820518-000 |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Weight | 110 g |
General Data
| Scope of delivery | 1 × E1L adjustment key 1 × initial start-up instructions 1 × laser warning sign 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Standards and certificates
      |
Connection Diagram
 |

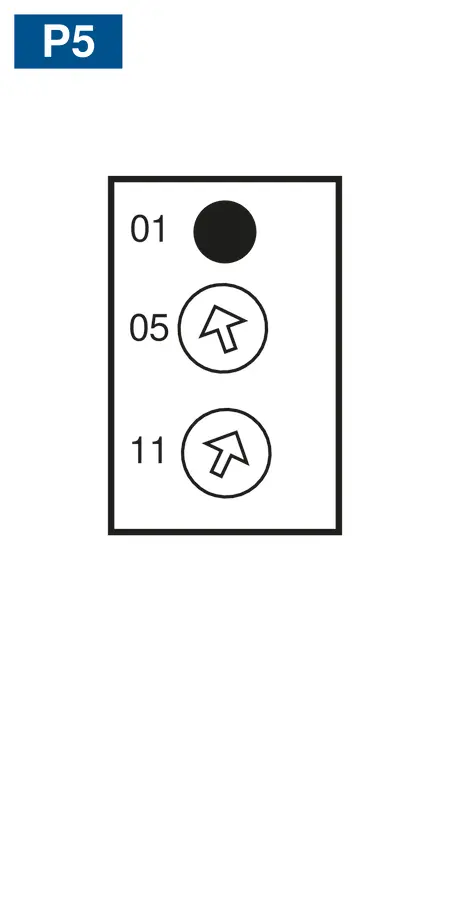

Ctrl. Panel
|
01 = Switching Status Indicator
11 = ON-Delay/OFF-Delay Adjuster 05 = Switching Distance Adjuster |
