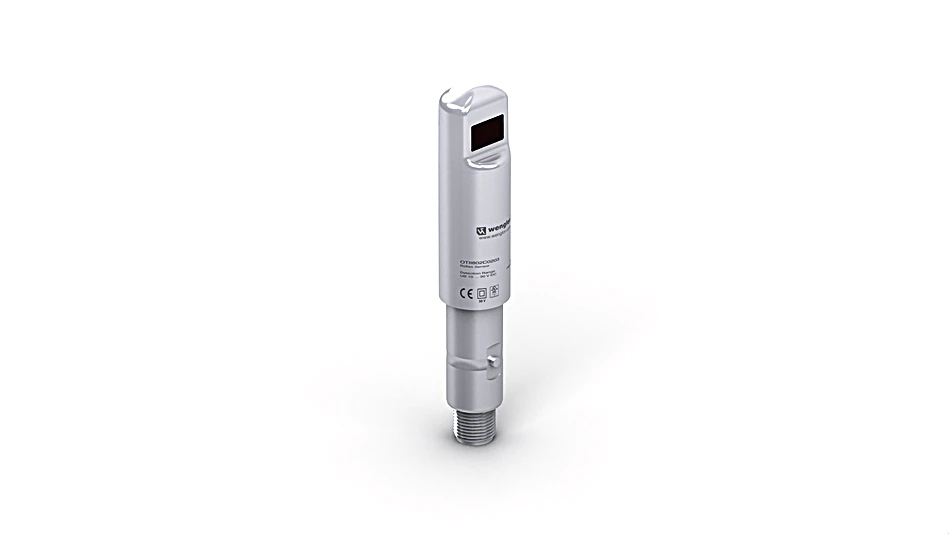

OTII802C0203 Reflex Sensor Energetic
Reflex Sensor
In Stock
$408.15
per unit
Applications: Sensors & I/O
Description
The photoelectronic sensors in the hygienic housing are distinguished by a captive optic cover and food-safe, FDA-compliant materials. The hygienic design with no corners or edges enables optimal flow of cleaning agents. The laser-welded 316L stainless steel housing (1.4404/V4A) is resistant to high-pressure cleaning (degree of protection IP69K) and suitable for cleaning-intensive applications. When combined with the available accessories, gap-free installation is guaranteed for the highest hygiene requirements. Setting is performed by means of touch teach-in through the hermetically sealed housing.
Features at a Glance
- Hygienic design makes it easy to clean
- Made with food safe materials that are FDA approved
- Waterproof (IP68/IP69K)
- Touch teach-in, external teach-in
Technical Data
Optical Data
| Range | 800 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Wavelength | 880 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1,600 Hz |
| Response Time | 313 µs |
| On-/Off-Delay (RS-232) | 0 … 5 s |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | NT, MT |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Stainless steel, V4A (1.4404 / 316L) |
| Degree of Protection | IP69K IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Glass |
| Material Control Panel | Plastic, PC (FDA) |
| Weight | 106 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
| Approvals | Ecolab FDA compliant |
Output
| PNP NO | yes |
| External teach-in input | yes |
| RS-232 with Adapterbox | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Detection Range | 100 mm | 500 mm | 800 |
| Light Spot Diameter | 19 mm | 40 mm | 55 mm |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
01 = Switching Status Indicator 02 = Contamination Warning |

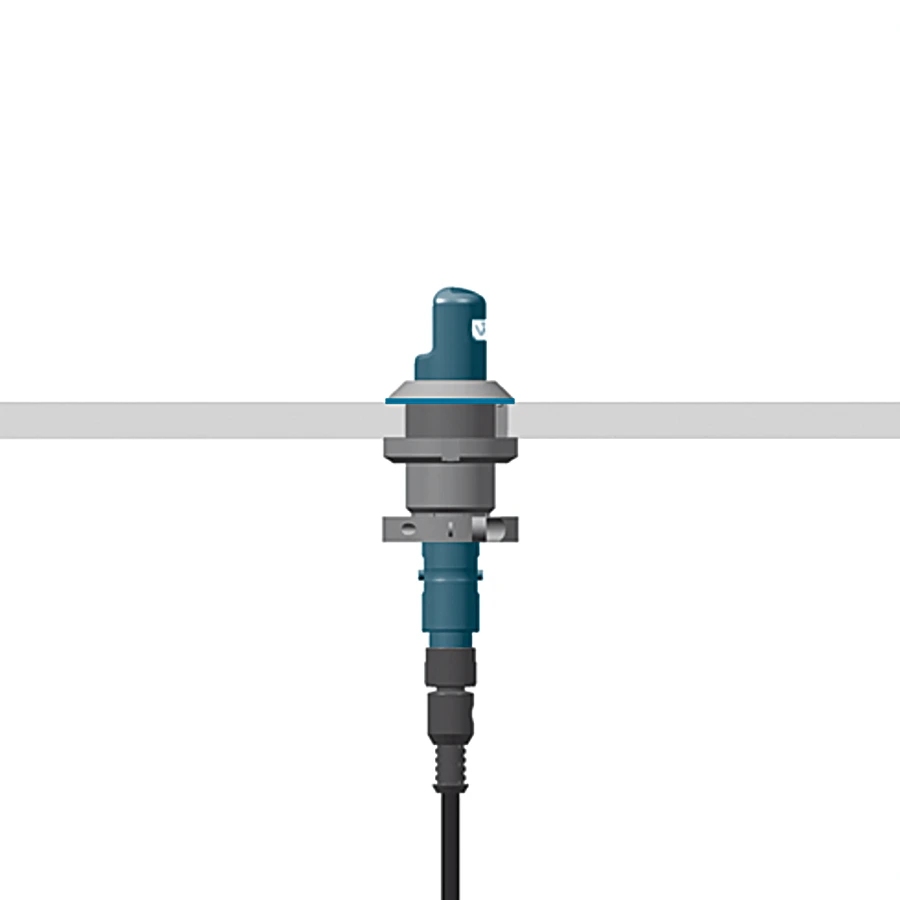

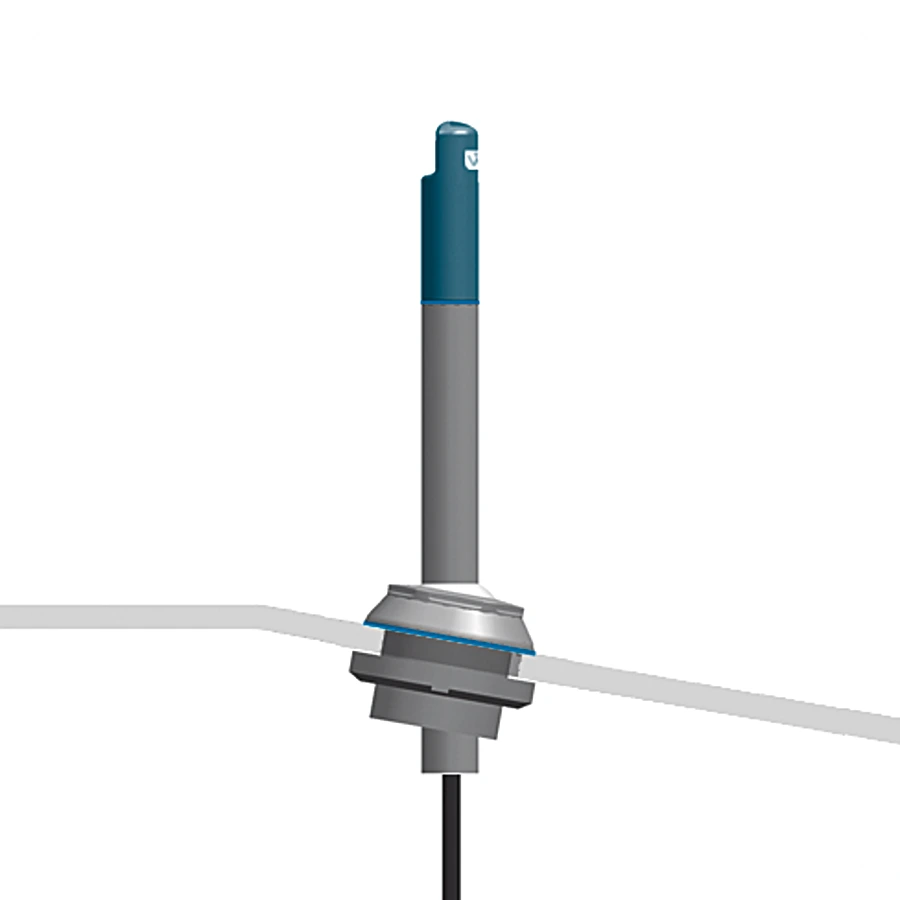

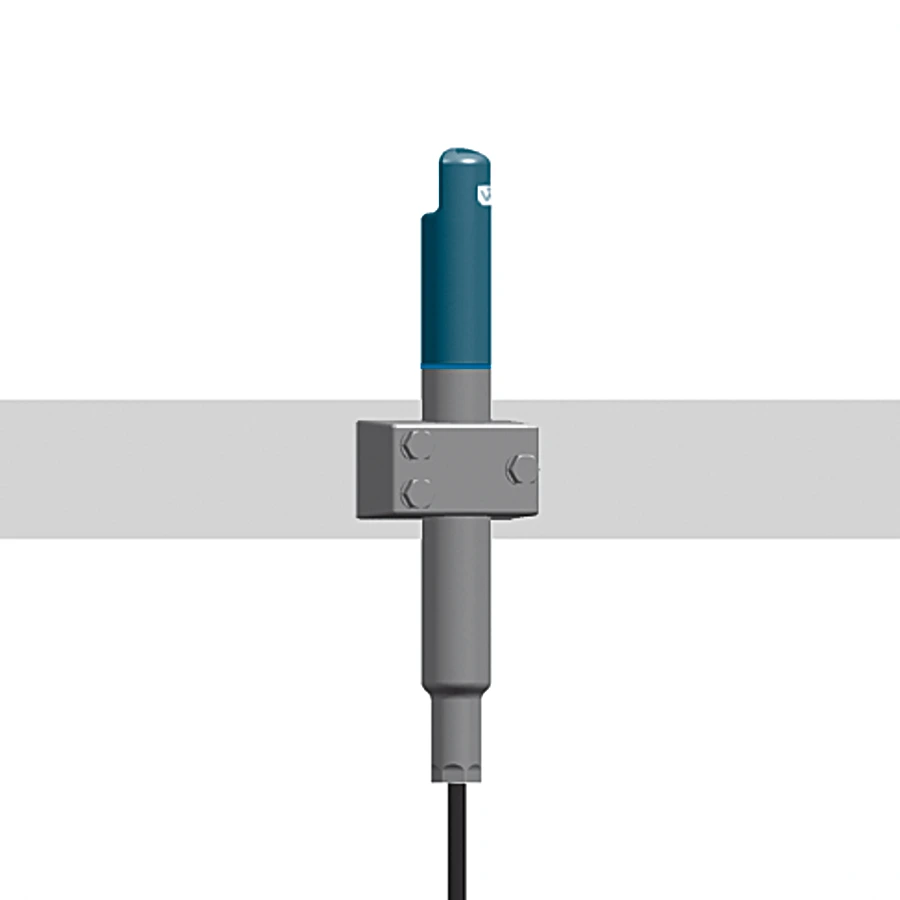

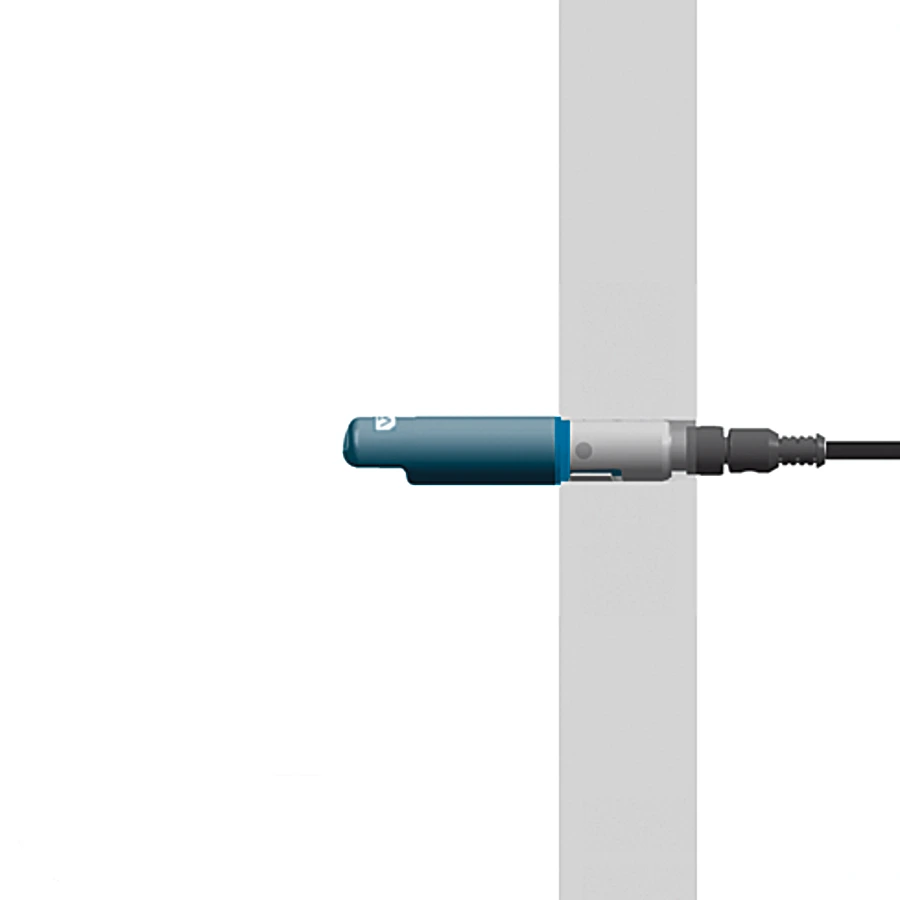

Examples of Installation
|
|
