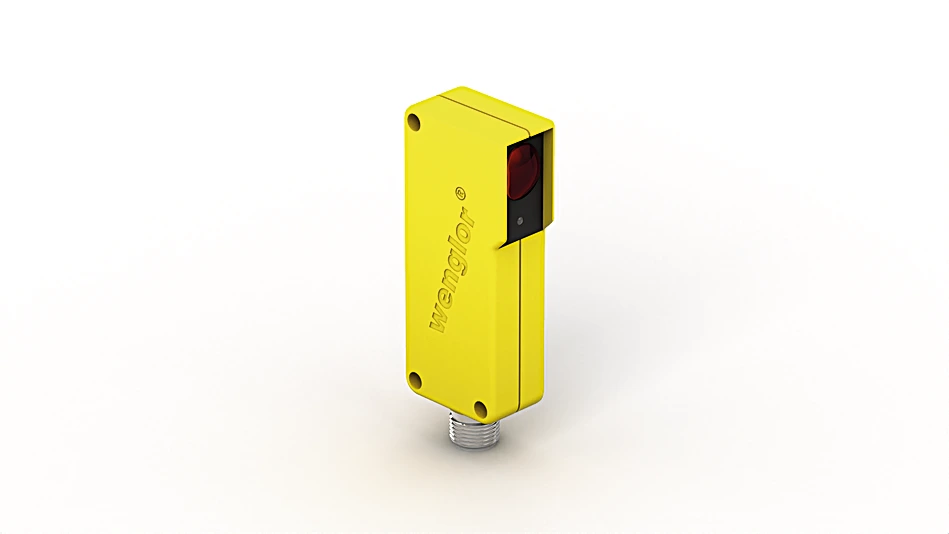

SL2-00NE000H2 Safety Through-Beam Sensor Receiver
Safety Through-Beam Sensor
In Stock
$425.08
per unit
Applications: Safety Systems, Sensors & I/O
Description
These through-beam sensors are well suited for use in rough industrial environments. Together with the individual safety light barrier control unit SS2-00VA000Rx, access of machines can be safeguarded. This product has been discontinued, but is still available as a spare part. Successor Discontinuation Info
Features at a Glance
- Please note: According to Machinery Directive 2006/42/EC, this article may only be used as a spare part.
- Glass lenses
Technical Data
Optical Data
| Range | 0 … 20 m |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | ± 4 ° |
Electrical Data
| Sensor Type | Receiver |
| Supply Voltage | 19.2 … 28.8 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 1.5 V |
| PNP Switching Output/Switching Current | 300 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Overload Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, PBT |
| Optic Cover | Glass |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 78 g |
Safety-relevant Data
| ESPE Type (EN 61496) | 2* |
| Safety Category (EN ISO 13849-1) | 2* |
| Performance Level (EN ISO 13849-1) | PL c* |
| PFHD | 3,16 × E-7 1/h * |
| Mission Time TM (EN ISO 13849-1) | 20 a |
| MTTFd (EN ISO 13849-1) | 381 a |
General Data
| Scope of delivery | 1 × BEF-SET-02 mounting set 1 × sensor |
Standards and certificates
   |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning |
