SEFG535 Safety Light Curtain Finger Protection
Safety Light Curtain
Applications: Safety Systems, Sensors & I/O
Description

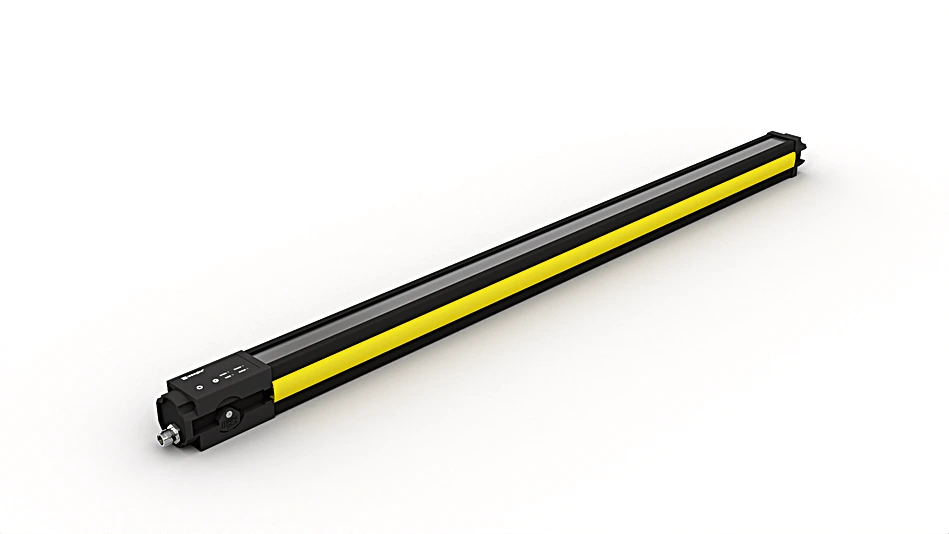

The safety light curtain can be flexibly integrated into systems thanks to the well-conceived mounting technology and the compact housing. Alignment of the emitter and the receiver is simplified by the visible red light and the signal strength display. User-friendly wTeach2 software make settings and diagnosis via the IO-Link interface extremely easy. Settings can be subsequently saved to a microSD card and quickly duplicated on other products. Extensive muting functions guarantee an ideal solution for every application in order to safely transport objects into and out of the danger zone.
Technical Data
Optical Data
| Range | 0.25 … 7 m |
| Housing Length (L) | 1,009 mm |
| Safety Field Height (SFH) | 760 mm |
| Resolution | 14 mm |
| Light Source | Red Light |
| Wavelength | 630 nm |
| Opening Angle | ± 2.5 ° |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 19.2 … 28.8 V DC |
| Current Consumption (Ub = 24 V) | ≤ 100 mA |
| Response Time | 16.2 ms |
| Temperature Range | -30 … 55 °C |
| Storage temperature | -30 … 70 °C |
| Protection Class | III |
Mechanical Data
| Housing Material | Aluminum, anodised |
| Optic Cover | Plastic, PC |
| Degree of Protection | IP65 IP67 |
| Connection | M12 × 1; 5-pin |
| Weight | 1,550 g |
Safety-relevant Data
| ESPE Type (EN 61496) | 4 |
| Performance Level (EN ISO 13849-1) | Cat. 4 PL e |
| PFHD | ≤ 1.8 × 10-8 |
| Mission Time TM (EN ISO 13849-1) | 20 a |
| Safety Integrity Level (EN 61508) | SIL 3 |
| Safety Integrity Level (EN 62061) | SILCL 3 |
General Data
| Scope of delivery | 1 × safety light curtain |
Function
| Finger Protection | yes |
Output
| IO-Link | yes |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
03 = Error Indicator
68 = Power LED 8a = coding 95 = Diagnosis/Large Detection Range |
