Description

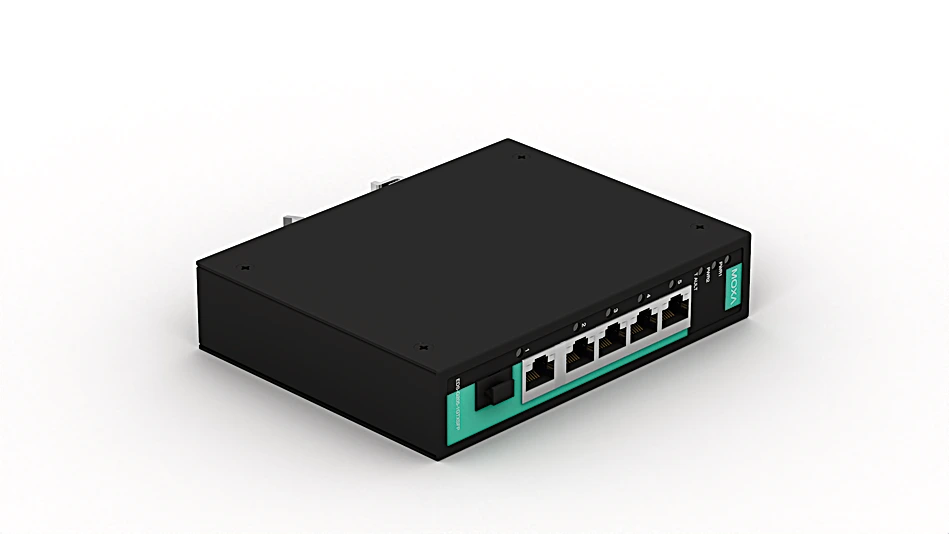

This switch allows simple connecting of up to five Ethernet products.
Features at a Glance
- Rugged aluminium housing
- 5 Ethernet ports
Technical Data
Electrical Data
| Supply Voltage | 12 … 48 V |
| Current Consumption (Ub = 24 V) | 0.16 A |
| Temperature Range | -10 … 60 °C |
| Overload Protection | yes |
| Reverse Polarity Protection | yes |
| Number of Gigabit Ethernet RJ45 | 5 |
| Transmission rate | 10/100/1000 Mbit/s |
| Transmission Mode | Full/Half Duplex |
| Switch Mode | Store & Forward |
| Auto-Crossover | yes |
| Auto-Negotiating | yes |
| Auto-Polarity | yes |
Mechanical Data
| Material | Aluminum, anodised |
| Degree of Protection | IP30 |
| DIN-Rail mounting | 35 mm |
| Connection | Terminal Block |
| Weight | 286 g |
General Data
| Scope of delivery | 1 × switch |
