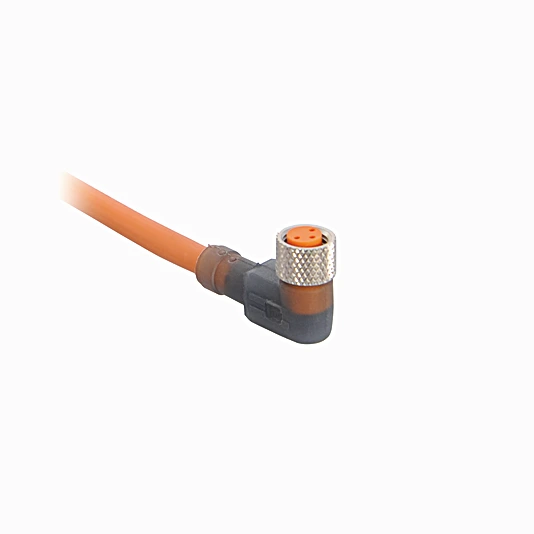

S41-5M Connection Line M8 × 1; 3-pin
Connection Line
In Stock
$31.88
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Angled
Technical Data
Electrical Data
| Supply Voltage | ≤ 63 V AC/DC |
Mechanical Data
| Connection 1 | Socket, angled |
| Connection mode 1 | M8 × 1, 3-pin |
| Connection 2 | stripped |
| Cable length (L) | 5 m |
| Outer diameter (d) | 5 mm |
| Wire cross-section | 0.34 mm² |
| Degree of Protection | IP67 |
| Temperature Range | -40 … 90 °C |
| Cable Jacket Material | Plastic, PVC |
| Weight | 175 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
 |

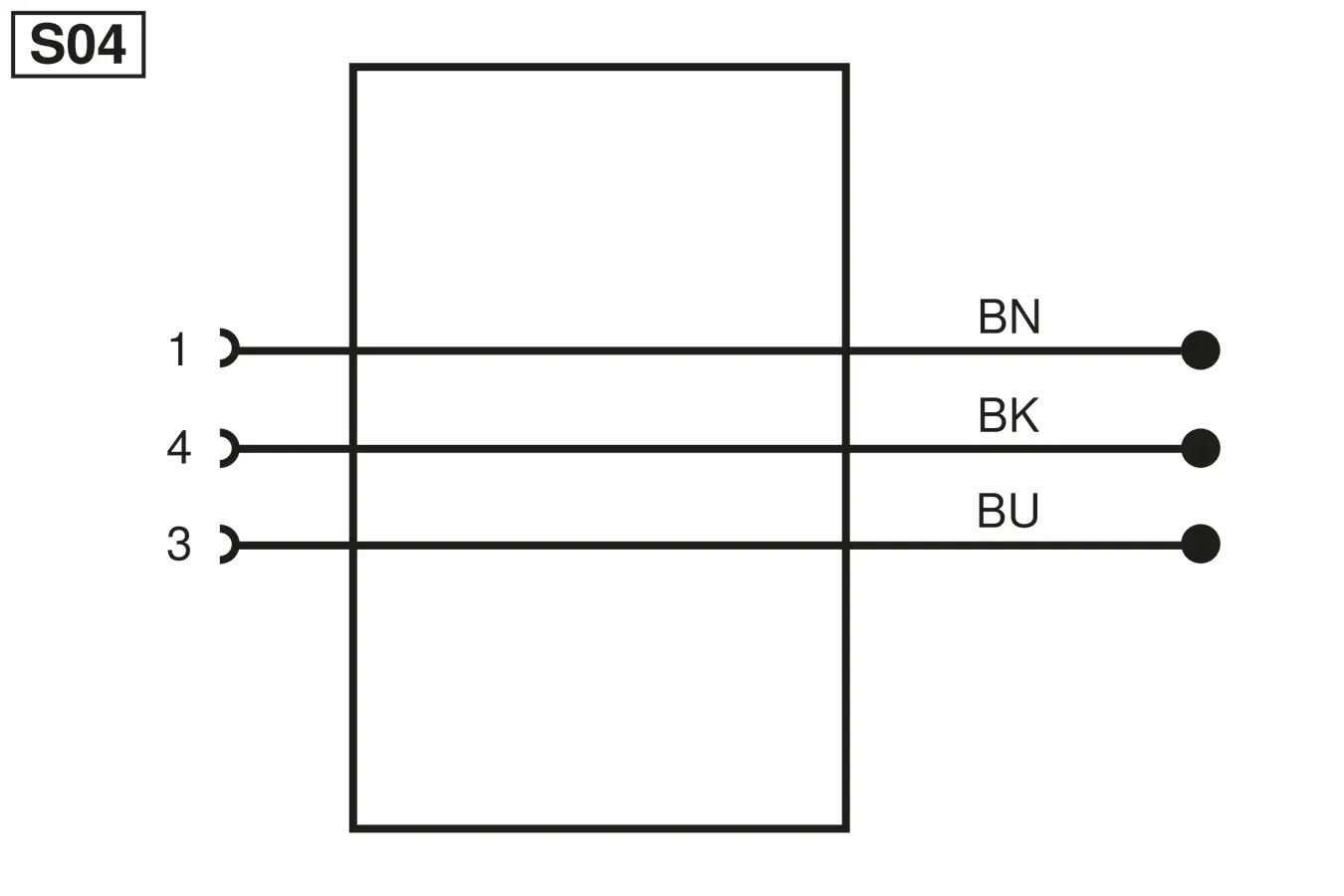

Connection Diagram
 |
