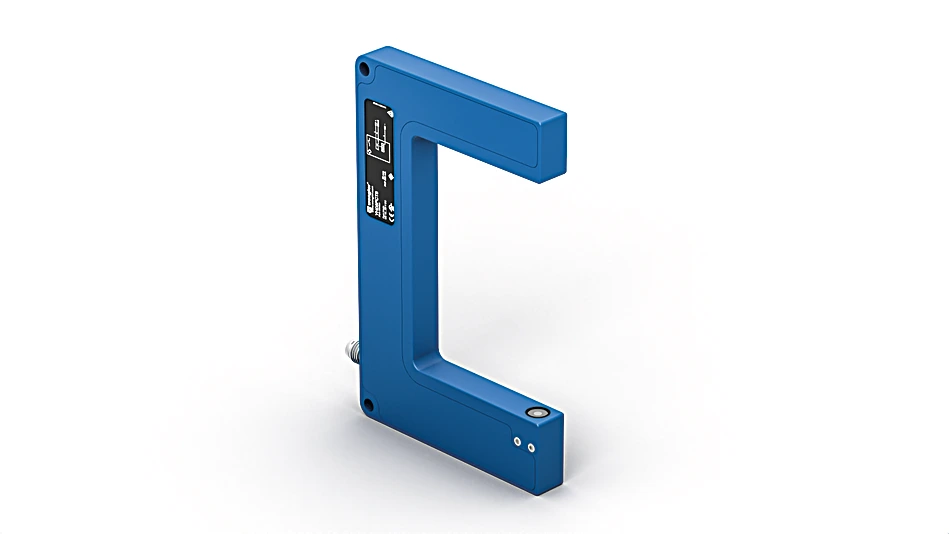

Description
The transmitter and the receiver are integrated into a single housing as a light barrier. If the active light beam between the transmitter and the receiver is interrupted, the output is switched accordingly. Thanks to the use of visible laser light, the sensor is very easy to align to the object. The use of a fine light beam ensures a small diameter spot over the entire width of the fork. This allows for the recognition of extremly small parts, holes, slots and notches.
Features at a Glance
- Recognition of transparent objects
- Fine light beam (0,6 mm) over entire width of fork
- Repetition accuracy: 5 µm
- Teach-in
Technical Data
Optical Data
| Fork Width | 80 mm |
| Smallest Recognizable Part | 40 µm |
| Smallest Detectable Gap | 50 µm |
| Switching Hysteresis | < 20 µm |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 0.6 mm |
| Repeat Accuracy | < 5 µm |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 50 mA |
| Switching Frequency | 10 kHz |
| Response Time | 50 µs |
| Off-Delay | 0 … 100 ms |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 1.5 V |
| NPN Switching Output/Switching Current | 200 mA |
| Internal Load Switching Output | 5,100 Ohm |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Teach Mode | NT, MT |
| Protection Class | III |
| FDA Accession Number | 2510938-000 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, PA Steel, nickel-plated |
| Optic Cover | Plastic, PC |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M8 × 1; 3-pin |
| Weight | 130 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,436.4 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| NPN NO | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |

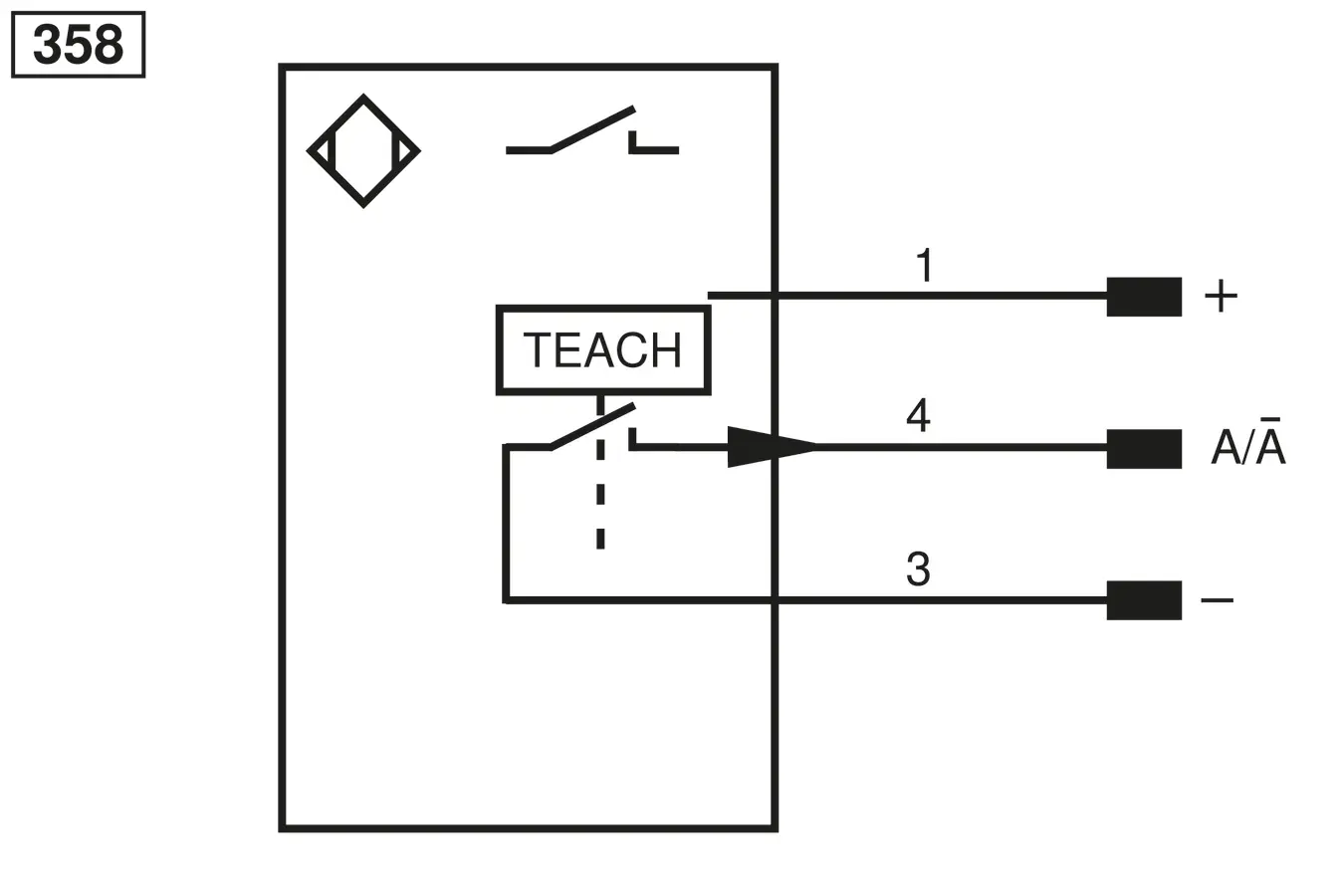

Connection Diagram
 |
Ctrl. Panel
|
02 = Contamination Warning
01 = Switching Status Indicator 07 = Selector Switch 06 = Teach Button |
