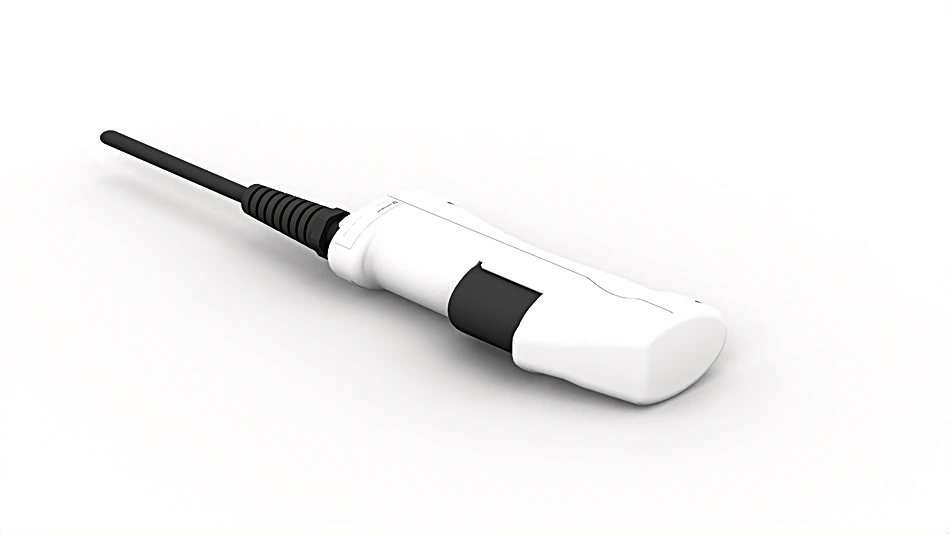

S2DF003 Enabling Switch
Enabling Switch
In Stock
$792.00
per unit
Applications: Safety Systems, Sensors & I/O
Description
The 3-stage enabling switch is very well suited to extensive commissioning or service work thanks to the special design. The ergonomic design prevents fatigue and makes work easier.
Features at a Glance
- One-hand operation thanks to ergonomic design
- Rubberized enabling switch
Technical Data
Electrical Data
| Temperature Range | -5 … 60 °C |
Mechanical Data
| Housing Material | Plastic |
| Service Life (Switching Cycles) | 1000000 |
| Degree of Protection | IP54 |
| Connection | Cable; 12-wire |
| Cable length (L) | 10 m |
| Weight | 940 g |
Safety-relevant Data
| B10d Switching Cycles | 100 000 |
| Changeover Contacts | 3 |
General Data
| Scope of delivery | 1 × quick start 1 × enabling switch |
Function
| 3-stage | yes |
Standards and certificates
  |
Connection Diagram
 |
Ctrl. Panel
|
93 = Confirmation key
|
