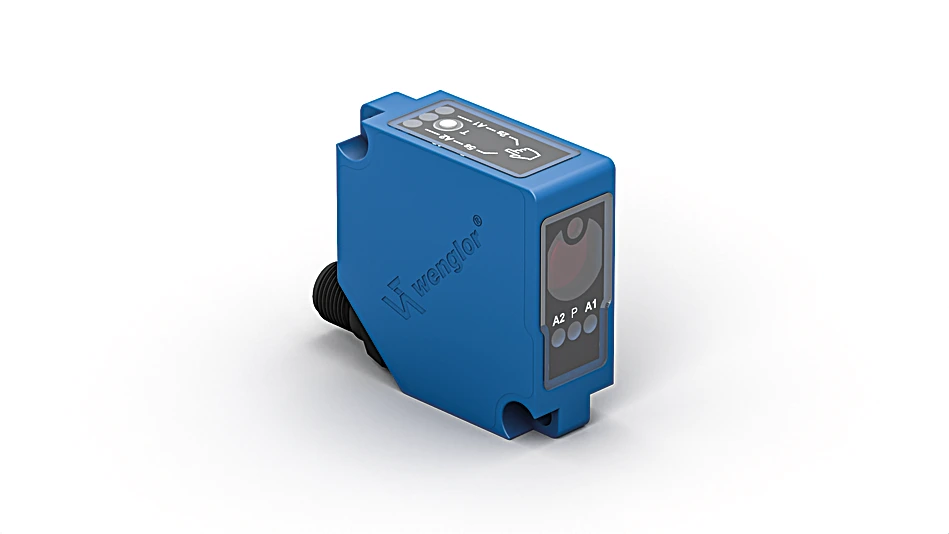

P1PY001 Laser Distance Sensor Time of Flight
Laser Distance Sensor
In Stock
$613.00
per unit
Applications: Sensors & I/O
Description
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. wenglor interference-free technology (wintec) has revolutionized sensor technology: It makes it possible to mount several sensors directly next to, or opposite each other without the sensors influencing each other. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
Features at a Glance
- Secure detection of black objects also in extremely inclined positions with wintec
- No mutual interference with wintec
- Interference-free towards gloss in the background with wintec
- Reliable in case of glossy objects with wintec
- 2 mutually independent switching outputs
Technical Data
Optical Data
| Working Range | 0 … 3,000 mm |
| Setting Range | 200 … 3,000 mm |
| Switching Hysteresis | < 15 mm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Beam Divergence | < 2 mrad |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
| Reflector required | no |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 500 Hz |
| Response Time | 1 ms |
| Temperature Drift (-10 °C < Tu < 50 °C) | < 1 % |
| Temperature Drift (Tu < -10 °C, Tu > 50 °C) | < 2.5 % |
| Temperature Range | -40 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
| FDA Accession Number | 1910001-001 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP68 |
| Connection | M12 × 1; 5-pin |
| Weight | 37 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 949.92 a |
General Data
| Scope of delivery | 1 × BEF-SET-44 mounting set 1 × initial start-up instructions 1 × sensor |
Output
| PNP NO | yes |
| IO-Link | yes |
Adjustable parameters
| Output | PNP NPN |
| Circuit | NO NC |
| Other parameters | Off-delay On-delay Emitted light |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Working Distance | 0 m | 3 m |
| Light Spot Diameter | 5 mm | 9 mm |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
68 = Power LED 5a = Switching Status Indicator, O1 6a = Switching Status Indicator, O2 |
