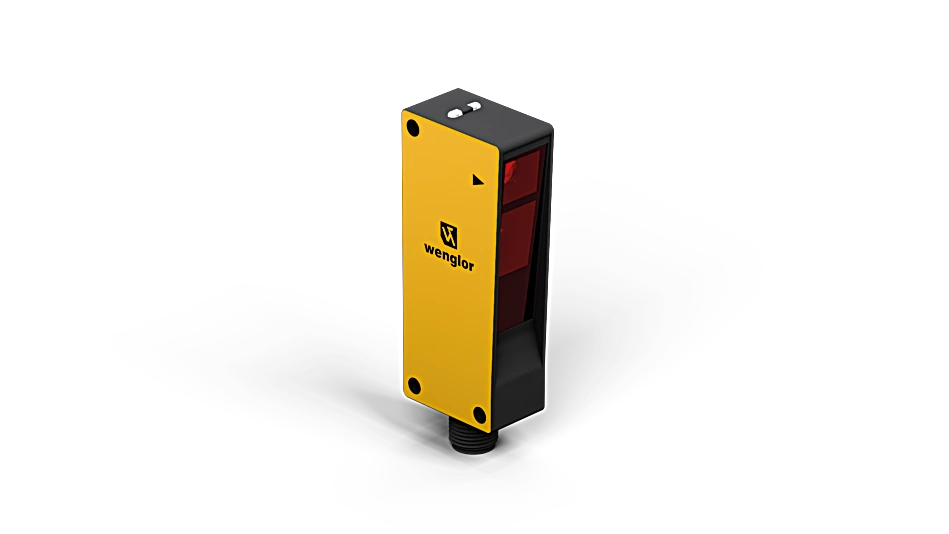

S1NE002 Safety Through-Beam Sensor Receiver
Safety Through-Beam Sensor
In Stock
$215.38
per unit
Applications: Safety Systems, Sensors & I/O
Description
These through-beam sensors are well suited for use in aggressive industrial environments. Secure machine access can be ensured in conjunction with the SS2-00VA000R4 safety analysis module.
Features at a Glance
- Compatible with SS2-00VA000R4 safety analysis module
Technical Data
Optical Data
| Range | 0.25 … 25 m |
| Light Source | Red Light |
| Wavelength | 660 nm |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | ± 5 ° |
Electrical Data
| Sensor Type | Receiver |
| Supply Voltage | 19.2 … 28.8 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Temperature Range | -30 … 60 °C |
| Storage temperature | -30 … 70 °C |
| Switching Output Voltage Drop | < 2 V |
| PNP Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Overload Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, ABS |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP65 IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 28 g |
Safety-relevant Data
| ESPE Type (EN 61496) | 2* |
| Safety Category (EN ISO 13849-1) | 2* |
| Performance Level (EN ISO 13849-1) | PL c* |
| PFHD | 3,16 × E-7 1/h * |
| Mission Time TM (EN ISO 13849-1) | 20 a |
| MTTFd (EN ISO 13849-1) | 381 a |
General Data
| Scope of delivery | 1 × sensor |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
30 = Switching Status/Contamination Warning
68 = Power LED |
