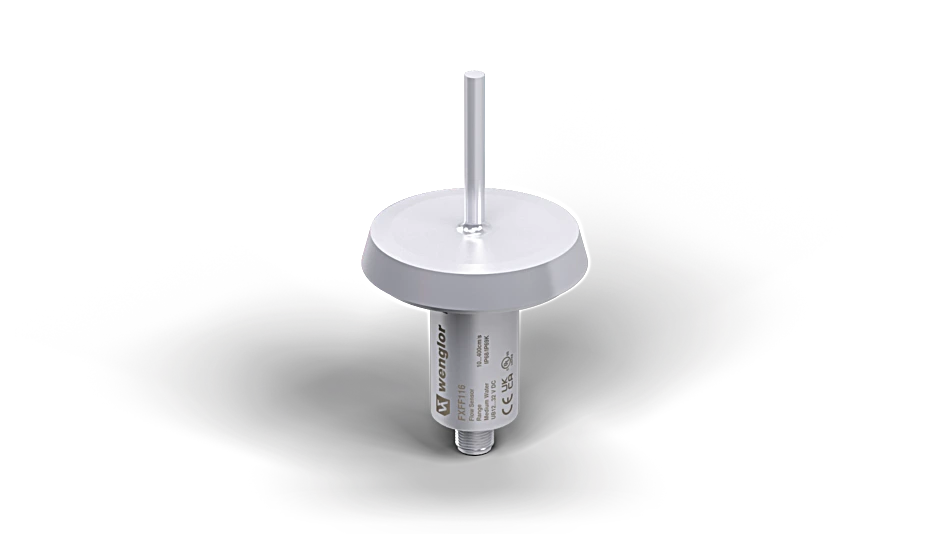

FXFF116 Flow Sensor 2 × Analog Output
Flow Sensor
In Stock
$743.38
per unit
Applications: Sensors & I/O
Description
weFlux² Flow Sensors with two analog outputs simultaneously measure flow velocity and the temperature of aqueous liquids regardless of position and direction of flow. Advantage: The number of measuring points and the diversity of sensor variants are cut in half, and greatest possible flexibility is assured for installation in closed piping systems. The analysis module is integrated into the compact housing.
Features at a Glance
- 2 analog outputs: 4 … 20 mA
- FDA compliant
- A single sensor for flow and temperature
- Measurement independent of flow direction and instillation position
Technical Data
Sensor-specific data
| Measuring Range | 10 … 400 cm/s |
| Temperature of the medium, flow measurement | 0 … 125 °C** |
| Temperature of the medium, temperature measurement | -25 … 150 °C |
| Setting Range | 10 … 400 cm/s |
| Medium | Water |
| Measuring error (total) | ≤ 2 % |
| Temperature measurement error | ± 1 °C |
| MTTFd (EN ISO 13849-1) | 1,210.41 a |
| Response time in case of temperature jump | 10 s |
| Step response time T90 | < 5 s |
Environmental conditions
| Ambient temperature | -25 … 80 °C |
| Storage temperature | -25 … 80 °C |
| Pressure Resistance | 25 bar |
| EMC | DIN EN 61326-1 |
| Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 5 g (10…2000 Hz) |
Electrical Data
| Supply Voltage | 12 … 32 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Number of analog outputs | 2 |
| Analog Output | 4…20 mA |
| Signal source | Flow |
| Response Time | 1 … 5 s |
| Operating delay time | < 10 s |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Stainless steel, V4A (1.4404/316L) |
| Material in contact with media | Stainless steel, V4A (1.4404/316L) |
| Degree of Protection | IP69K * IP68 * |
| Connection | M12 × 1; 4-pin |
| Process Connection | Dairy pipe DN50 |
| Process Connection Length (PCL) | 73 mm |
| Probe Length (PL) | 50 mm |
| Rod diameter | 6 mm |
| Weight | 581 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| Analog output flow | yes |
| Analog output temperature | yes |
Adjustable parameters
| Signal source | Flow Temperature |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Connection Diagram
 |
