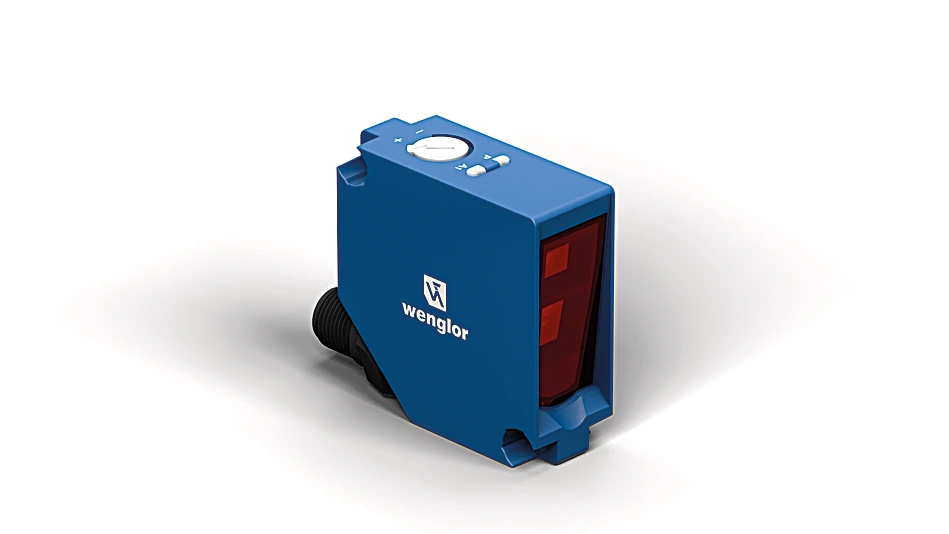

P1PL202 Retro-Reflex Sensor Universal
Retro-Reflex Sensor
In Stock
$229.00
per unit
Applications: Sensors & I/O
Description
The retro-reflex sensor works with red light and a reflector. It also reliably detects objects with reflective or glossy surfaces at high speeds. Thanks to its great range, the sensor can, for example, be used to manage feed and presence controls as well as to detect objects on wide feed belts. The IO-Link interface can be used to configure retro-reflective barriers (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
Features at a Glance
- Also suitable for glossy and reflective objects
- Condition monitoring
- High switching frequency
- IO-Link 1.1
Technical Data
Optical Data
| Range | 11,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Smallest Recognizable Part | see Table 2 |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
| Two-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 2,000 Hz |
| Switching frequency (speed mode) | 3,500 Hz |
| Response Time | 0.25 ms |
| Response time (speed mode) | 0.14 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -40 … 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/PC |
| Degree of Protection | IP67 IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 31 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,629.81 a |
General Data
| Scope of delivery | 1 × Z1PE002 mounting set 1 × initial start-up instructions 1 × sensor |
Output
| IO-Link | yes |
| NPN NC, NPN NO | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC+NO NO |
| Other parameters | Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Working Distance | 2 m | 5,5 m | 11 m |
| Light Spot Diameter | 120 mm | 270 mm | 500 mm |
Table 2
| Distance, Sensor to Reflector | 2 m | 5,5 m | 11 m |
| Smallest Recognizable Part | 40 mm | 20 mm | 30 mm |
Connection Diagram
 |
Ctrl. Panel
|
30 = Switching Status/Contamination Warning
05 = Switching Distance Adjuster 68 = Power LED |
Reflector data
| RQ100BA | 0.02 … 11 m |
| RE18040BA | 0.02 … 7.6 m |
| RQ84BA | 0.04 … 10 m |
| RE9538BA | 0.05 … 4.5 m |
| RE6151BM | 0.07 … 7.5 m |
| RR50_A | 0.02 … 7 m |
| RE6040BA | 0.15 … 7.5 m |
| RE8222BA | 0.02 … 5 m |
| RR34_M | 0.1 … 5 m |
| RE3220BM | 0.1 … 3.4 m |
| RE6210BM | 0.1 … 2.5 m |
| RR25_M | 0.1 … 2.6 m |
| RR25KP | 0.1 … 2 m |
| RR21_M | 0.1 … 2.8 m |
| Z90R004 | 0.15 … 3.8 m |
| Z90R005 | 0.15 … 5.9 m |
| ZRAE02B01 | 0.02 … 4.5 m |
| ZRME01B01 | 0.1 … 1.7 m |
| ZRME03B01 | 0.1 … 5 m |
| ZRMR02K01 | 0.1 … 2 m |
| ZRMS02_01 | 0.05 … 2.6 m |
| RF505 | 0.1 … 3.3 m |
| RF508 | 0.1 … 3.1 m |
| RF258 | 0.1 … 3 m |
| ZRAF08K01 | 0.1 … 3.3 m |
| ZRDF03K01 | 0.1 … 7 m |
