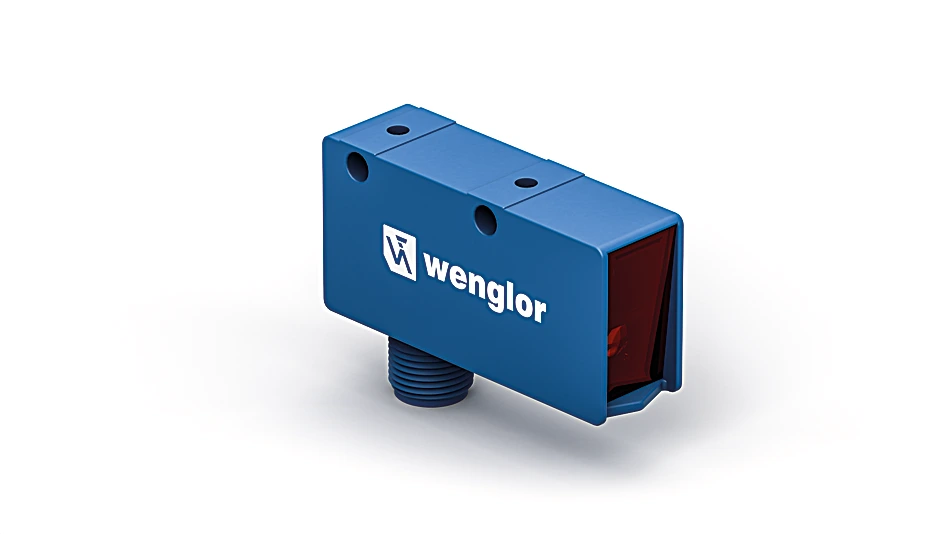

P1MH206 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$347.00
per unit
Applications: Sensors & I/O
Description
The reflex sensor with background suppression works with laser light according to the angle measurement principle. It has an IO-Link interface with a data storage function as well as additional configuration and diagnostic options. The interface can also be used to configure the sensors (PNP/NPN, NC/NO, switching distance, error output), as well as for reading out switching statuses and distance values.
Features at a Glance
- Data storage
- Wireless settings via NFC
- High-end
- IO-Link 1.1
- Teach-in, external teach-in
Technical Data
Optical Data
| Range | 200 mm |
| Setting Range | 30 … 200 mm |
| Switching Hysteresis | < 10 % |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
Electrical Data
| Supply Voltage | 15 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 1,600 Hz |
| Switching frequency (2 switching outputs) | 100 Hz |
| Response Time | 0.31 ms |
| Response time (2 switching outputs) | 5 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Data Storage | yes |
| Protection Class | III |
| FDA Accession Number | 2310152-001 |
Mechanical Data
| Setting Method | Teach-in/NFC |
| Housing Material | Plastic, ABS/GF |
| Degree of Protection | IP67 IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 17 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,312.61 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| NPN NO | yes |
| External teach-in input | yes |
| IO-Link | yes |
| NFC interface | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | inactive Error output NC NC+NO NO |
| Other parameters | Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light |
| All other parameters can be found in the product documentation. |
Standards and certificates
        |
Table 1
| Detection Range | 30 mm | 100 mm | 200 mm |
| Light Spot Diameter | 2 mm | 1,5 mm | 1,5 mm |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
2a = NFC interface 30 = Switching Status/Contamination Warning 68 = Power LED 6c = Adjustable |
