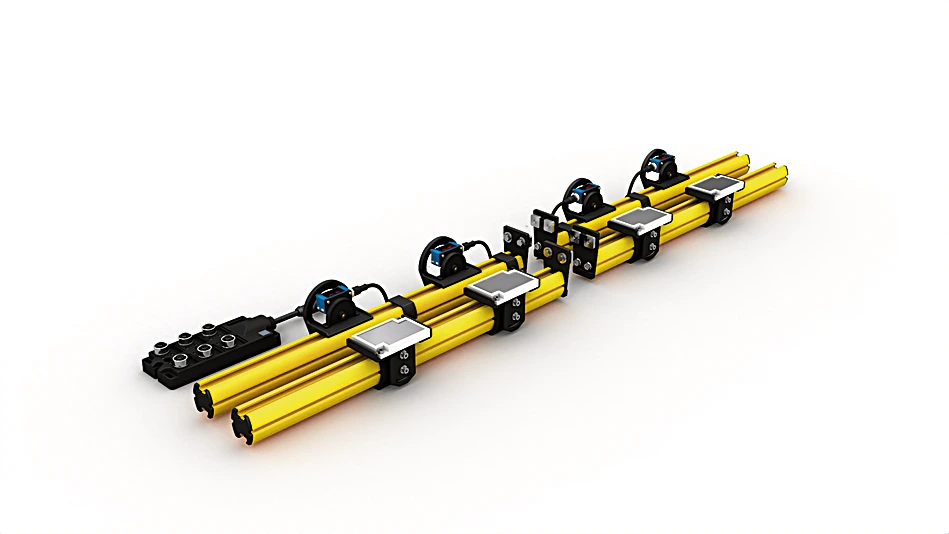

Z2MG003 Muting Set 4 Sensors, Linear Muting
Muting set
In Stock
$1,842.92
per unit
Applications: Safety Systems, Sensors & I/O
Description
The sensors are set up for 4-sensor linear muting with this pre-assembled muting set. It permits quick implementation of muting applications together with series SEFG safety light curtains or series SEFB multi-light arrays. Access protection for transporting long objects to and from the danger zone can be implemented safely and efficiently with the 4-sensor linear muting set.
Features at a Glance
- Muting for safe transport to and from the danger zone
- Plug & play thanks to the included connection box
- Pre-assembled muting set for fast initial start-up
- Muting set for 4-sensor linear muting
Technical Data
Electrical Data
| Temperature Range | -30 … 60 °C |
| Light Source | Red Light |
| Range | 0.01 … 3.5 m |
| Switching Frequency | 2,000 Hz |
Mechanical Data
| Housing Material | Aluminum |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 1 m |
| Degree of Protection | IP67 |
| Muting boom length | 400 mm |
| PNP NC | yes |
| Weight | 3,350 g |
General Data
| Scope of delivery | 1 × ZFBB001 connection box for muting sensors 4 × ZMZG002 muting reflector systems 4 × ZMZG001 muting sensor systems 4 × ZMZG005 muting arm |
| Default settings | Pre-assembled |
| Muting type | 4-sensor linear muting |
| Muting sensor | 4 × P1KL020 |
| Reflector | 4 × RE6040BA |
| Muting boom | 4 Pieces |
