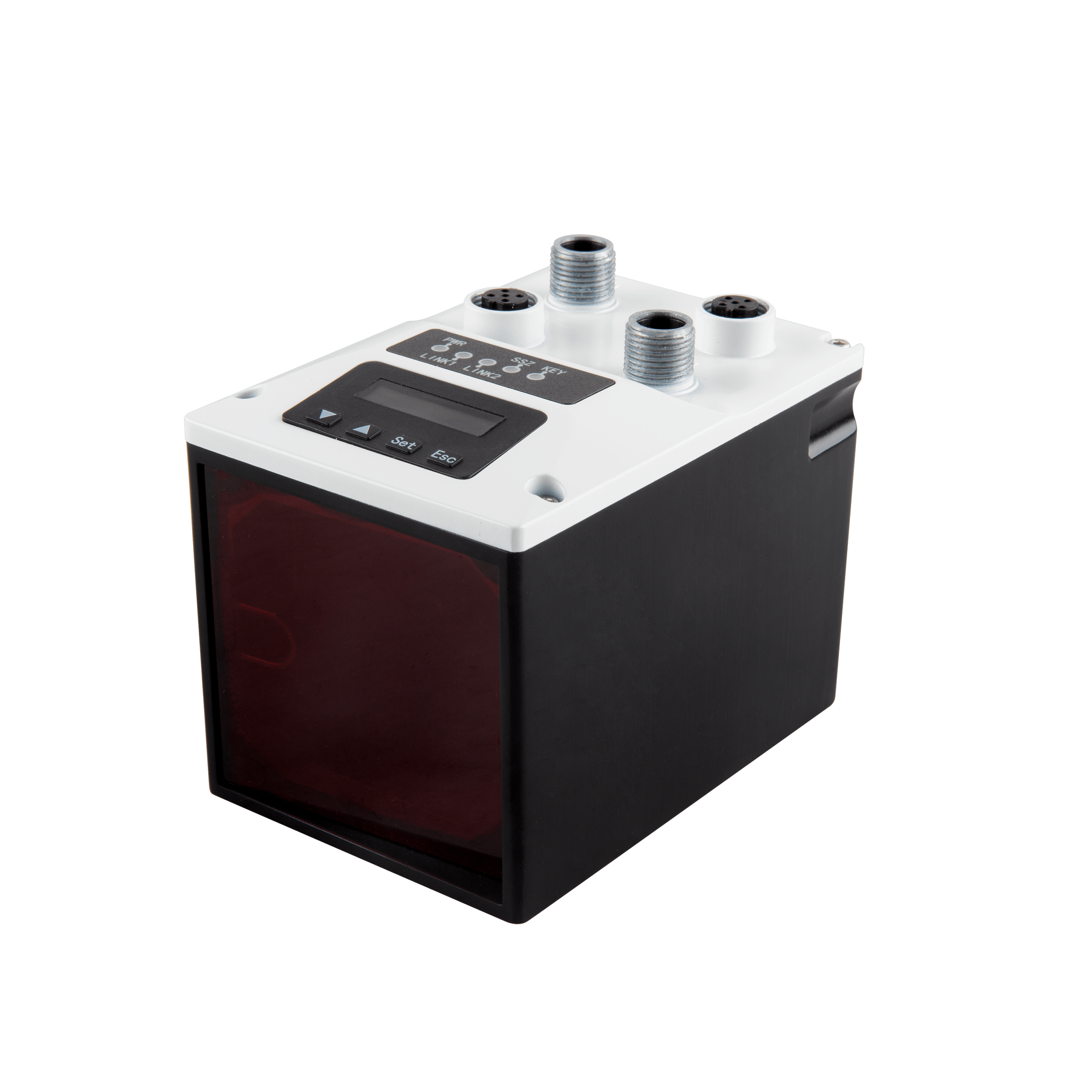

OSM300-KL20S2A422IOQ12 Distance Sensor
Distance Sensor, OSM300-Series, Diffused Laser Distance Sensor, Red laser, Operating range 0.15…20 m, Repeatability 1 mm, IO-Link, Analog, 2 x Push-Pull, RS422, 10…30V DC, -10…50°C, IP65, M12 connector
In Stock
$2,088.96
per unit
Applications: Sensors & I/O
Technical Data
| Connection | Connector |
| IP rating | IP67 |
| Connection type | 2 × M12, 5-pin + 1 × M12, 4-hole |
| Sensing range | 0.15 … 20 m |
| Light source | Red laser / Class 2 |
| Resolution | 1 mm |
| Repeatability | 1 mm |
| Output type | IO-LINK + Analog + Push-pull + RS422 |
| Output status | L.O / D.O |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 100 mA |
| Ambient temperature | -10 … +50 ℃ |
| Anti-ambient light | ≤ 10000 lux |
| Housing Material | Die-cast aluminum |
