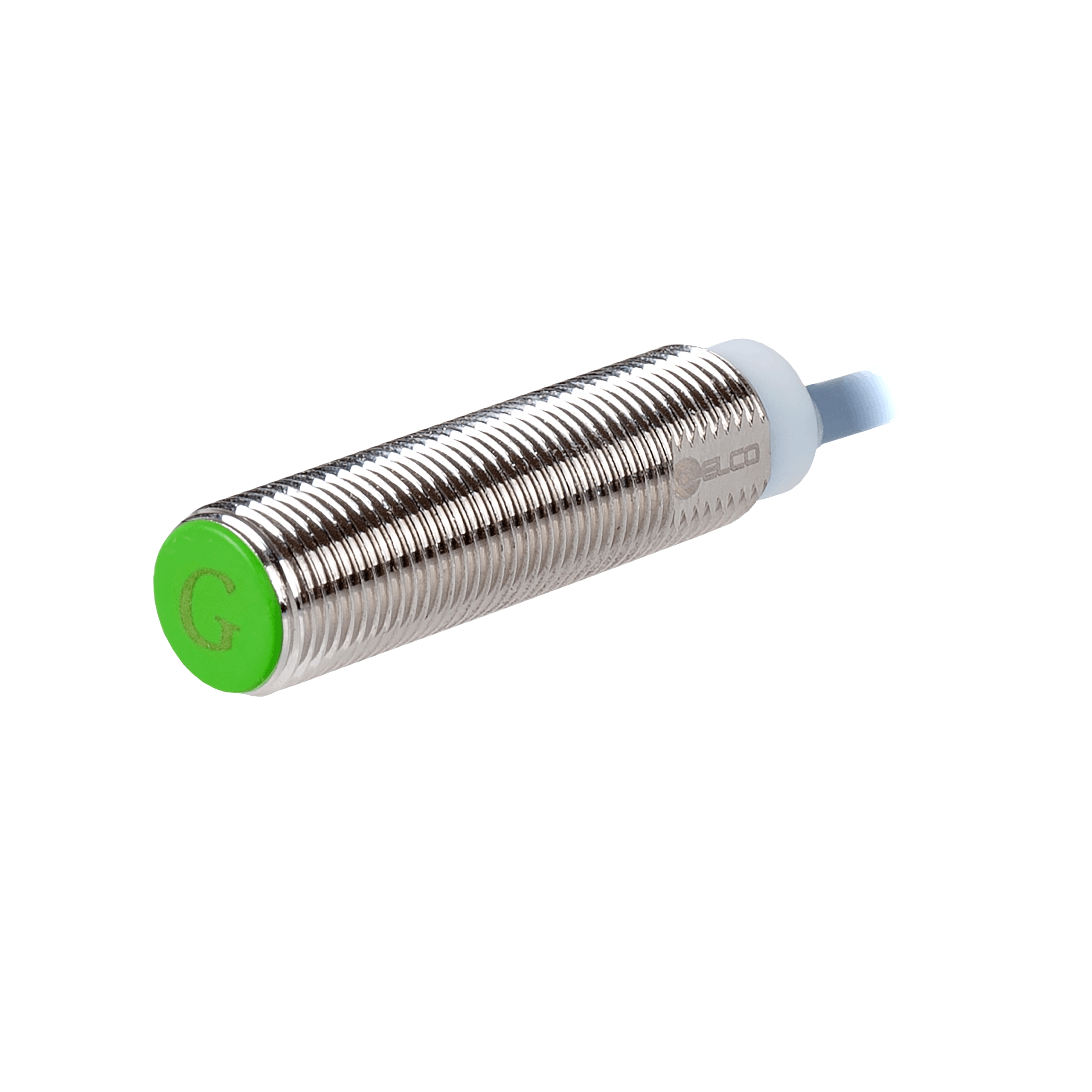

FI4-G12-OD6L Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M12, Switching distance 4 mm, Flush, IP68, -30…85 °C, 2-wire DC, Cable 2 m
In Stock
$18.06
per unit
Applications: Sensors & I/O
Technical Data
| Supply voltage | 10 … 30 V DC |
| Sensing range | 4 mm |
| External dimensions | M12 x 1 |
| Product size | M12 x 44 mm |
| Connection | Cable |
| Cable type | PVC |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 650 Hz |
| Ambient temperature | -30 … +85 ℃ |
| Load current | ≤ 100 mA |
| Output status | NO |
| Output type | DC |
| Mounting | Flush |
| Cable length | 2 m |
| IP rating | IP68 |
