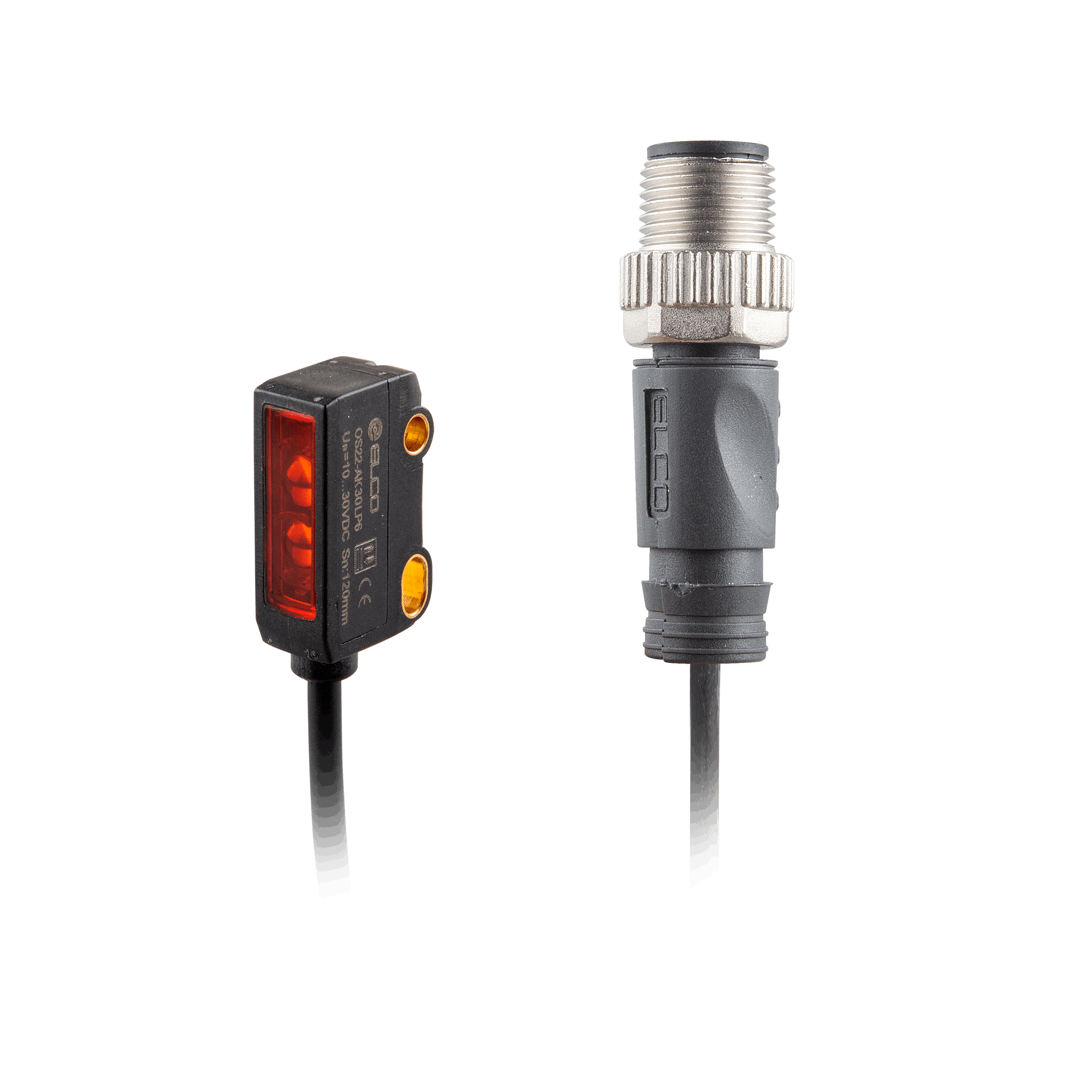

OS22-ELP6-0.3-Q12/I Photoelectric Sensor
Photoelectric Sensor, OS22-Series, Opposed, Receiver, Infrared beam, Operating range 2 m, PNP, L.O, 10…30V DC, -10…50°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M12 4-pin connector
In Stock
$28.55
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | 0.3 m cable + M12, 4-pin |
| Output type | PNP |
| Output status | L.O |
| Switching frequency | 800 Hz |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 100 mA |
| Ambient temperature | -10 … +50 ℃ |
| Anti-ambient light | ≤ 5000 lux |
| Housing material | PC + PBT |
| Connection | M12 Pigtail |
| IP rating | IP67 |
| Detection method | Opposed (Receiver) |
| Sensing range | 2 m |
