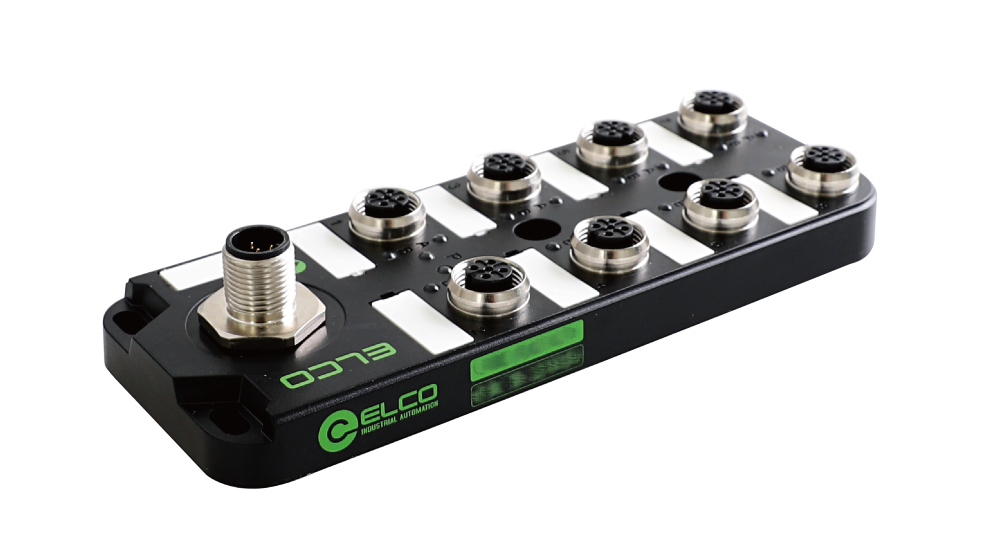

LKHA-16UN-M12 IO-Link Sensor Hub
Elco Automation | LKHA-16UN-M12

LKHA-16UN-M12 IO-Link Sensor Hub

IO-Link Sensor Hub, V1.1.3, Class-A, M12 A-Code 4-pin IO-Link connector, 8 x M12 A-code 5-pin, 16 DI/DO, NPN, 24 V DC, Plastic housing, IP67

In Stock
$148.22 per unit

Applications: HMI & Controls, Sensors & I/O

Technical Data

Communication protocol IO-Link
IP rating IP67
Housing material PC + ABS
Fieldbus connection 1 x M12 A-Code
Power supply 18 … 30 V DC
Signal connection 8 x M12 A-Code
Number of channels 16 DI/DO
Input type NPN
Output type NPN
Ambient temperature -25 … +70 °C
Storage temperature -40 … +85 °C
Certificate CE, UL
Dimensions 55 x 145 x 28 mm
Signal type Digital I/O

Documentation

3D Drawings

  • Icon

    3D Drawing - CAD_AD_LKHA-16DIO-M12_V1.0.stp

    1 file(s) 8.87 MB
    Download

Certificates & Compliance

  • Icon

    MTTF - MTTF_AD_LKHA-16UN-M12_V1.0_EN.pdf

    1 file(s) 299.59 KB
    Download
  • Icon

    UL - UL_AD_LKHA-IP67_V1.0_EN.pdf

    1 file(s) 105.28 KB
    Download
  • Icon

    CE - CE_AD_LKH-IP67_V1.0_EN.pdf

    1 file(s) 266.50 KB
    Download

Datasheets

  • Icon

    Datasheet - DS_AD_LKHA-16UN-M12_V1.0_EN.pdf

    1 file(s) 331.76 KB
    Download

Software

  • Icon

    Configuration file - Config_AD_LKHA-16UN-M12_V1.0.zip

    1 file(s) 35.08 KB
    Download

Technical Manuals

  • Icon

    Manual - UM_AD_LKHA-16BIT-M12_V1.0_EN.pdf

    1 file(s) 1.50 MB
    Download
