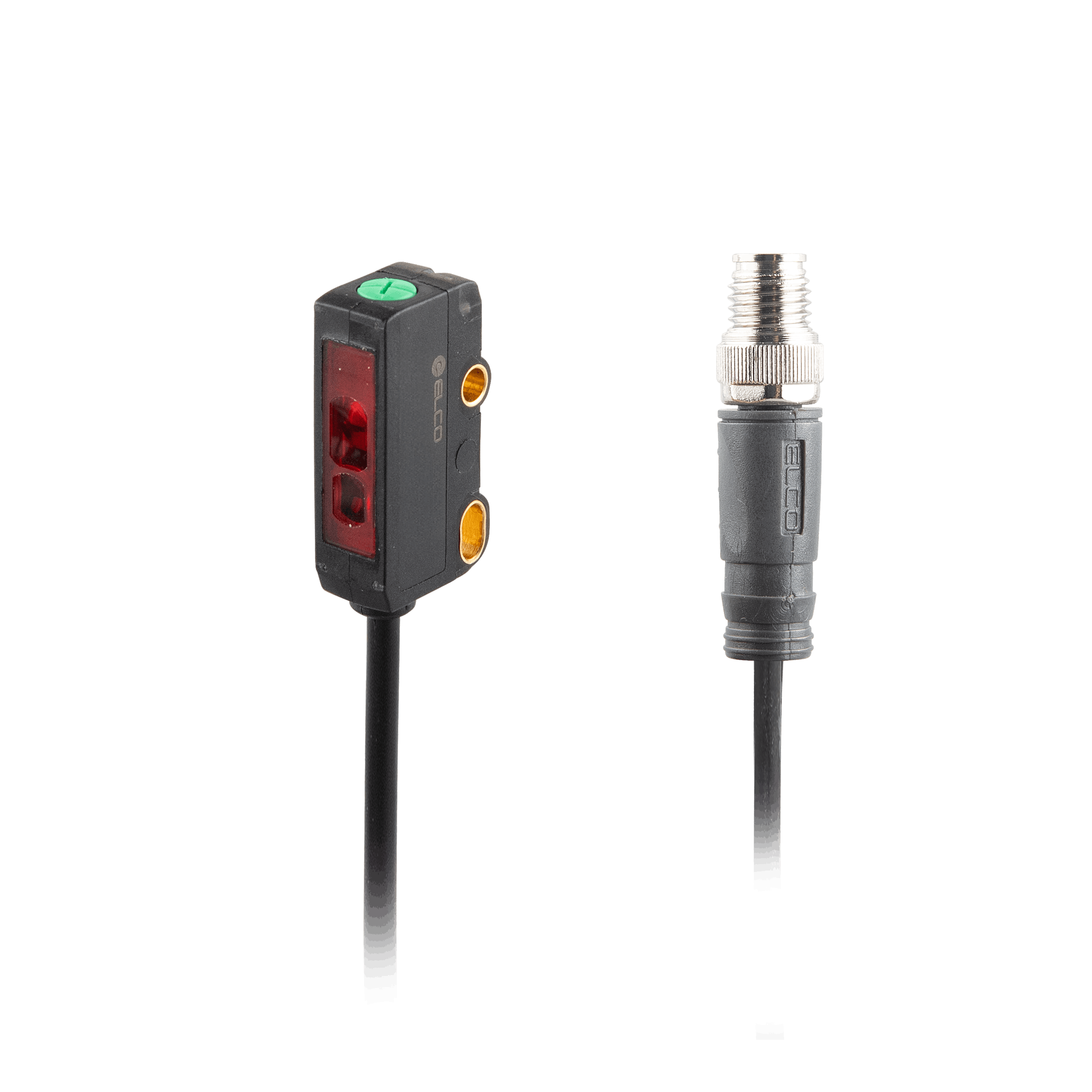

OS22-AK120LP6-0.3-Q8.3 Photoelectric Sensor
Photoelectric Sensor, OS22-Series, Diffused with BGS, Red beam, Operating range 10…120 mm, PNP, L.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, 0.3 m cable + M8 3-pin connector
In Stock
$46.74
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | 0.3 m cable + M8, 3-pin |
| Detection method | BGS Diffused |
| Sensing range | 10 … 120 mm |
| Light source | Red LED |
| Spot size | 8 mm @ 120 mm |
| Output type | PNP |
| Output status | L.O |
| Switching frequency | 200 Hz |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 100 mA |
| Ambient temperature | -10 … +50 ℃ |
| Anti-ambient light | ≤ 10000 lux |
| Housing material | PC + PBT |
| Connection | M8 Pigtail |
| IP rating | IP67 |
