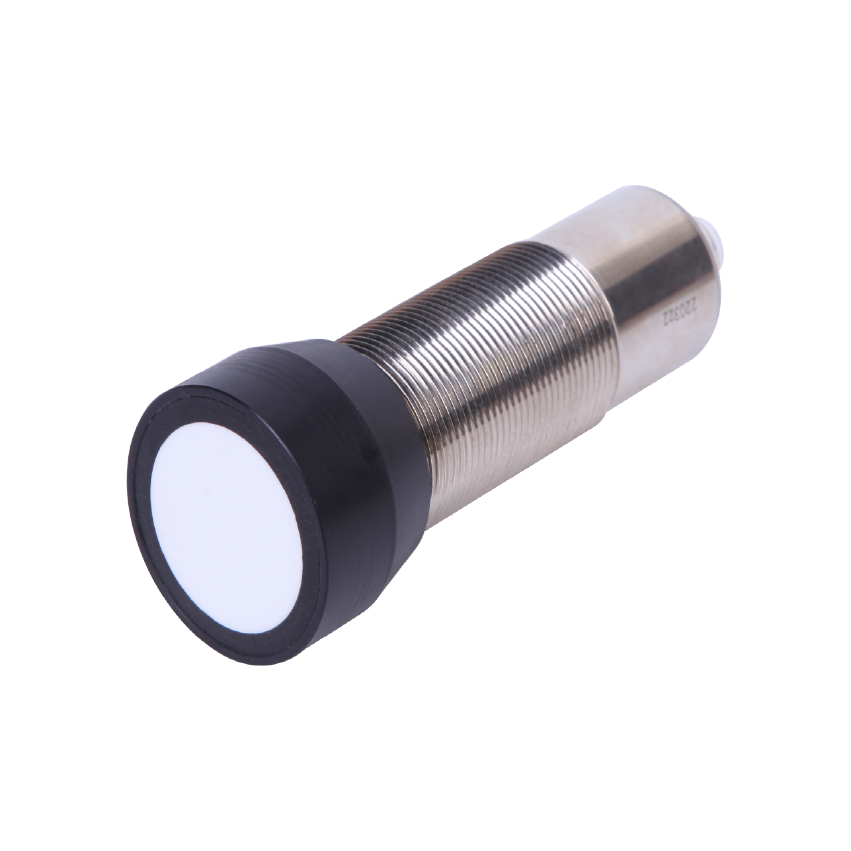

UKS4000-G30-VP7L-Q12 Ultrasonic Sensor
Ultrasonic Sensor, G30-Series, Diffused, Operating range 200…4000 mm, Resolution 1 mm, PNP, NC/NO, 15…30 V DC, -25…70 °C, Switching frequency 3 Hz, IP67, M12 4-pole
In Stock
$320.06
per unit
Applications: Sensors & I/O
Technical Data
| Supply voltage | 15 … 30 V DC |
| External dimensions | M30 x 1.5 |
| Output type | PNP |
| IP rating | IP65 |
| Product size | M30 x 117 mm |
| Output status | NO / NC |
| Ambient temperature | -25 … +70 ℃ |
| Load current | ≤ 200 mA |
| Housing material | Nickel-plated brass |
| Connection | M12, 4-pin |
| Switching frequency | 3 Hz |
| Sensing range | 200 … 4000 mm |
