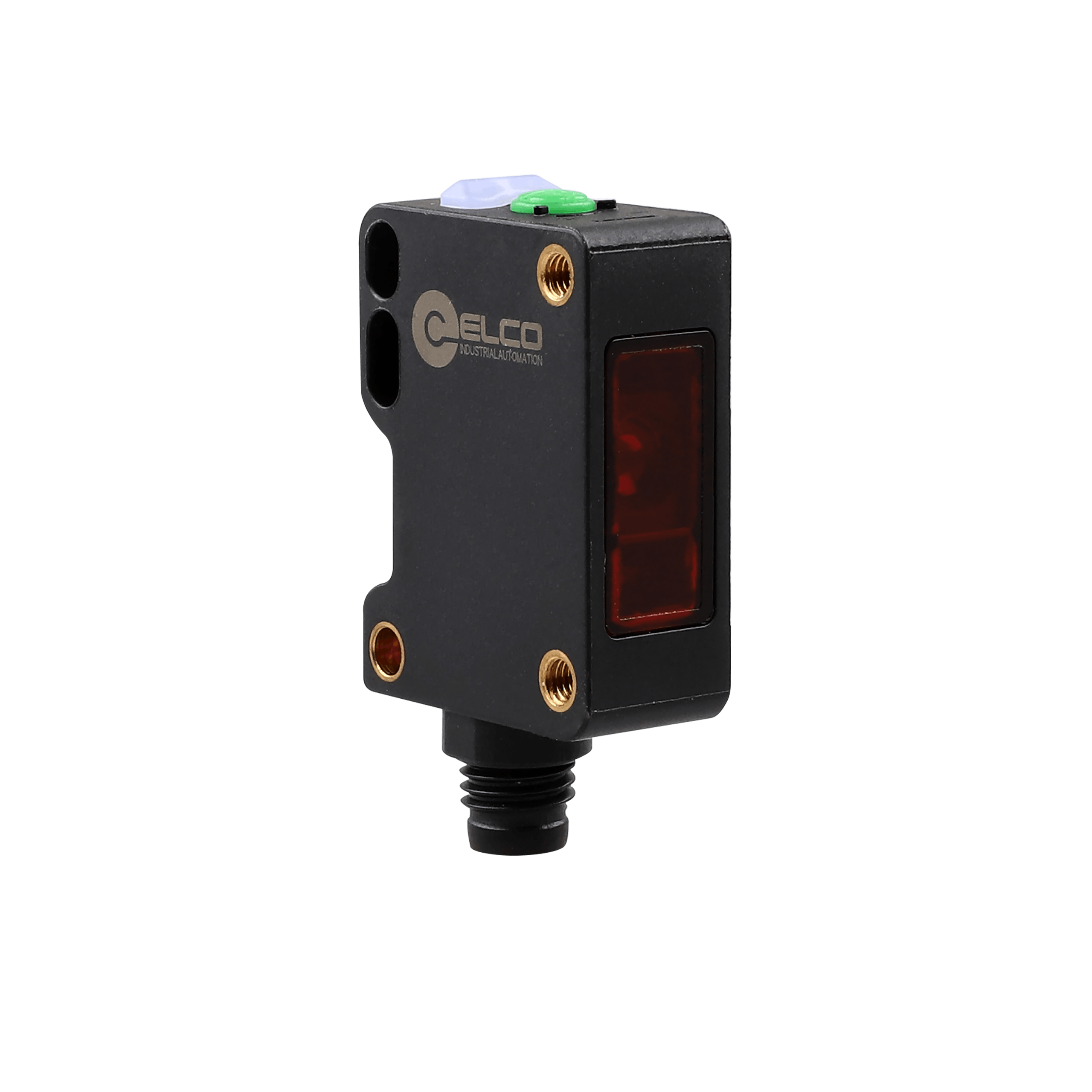

OS20-AK100CP6Q8/L Photoelectric Sensor
Photoelectric Sensor, OS20-Series, BGS line array light source type, Red beam, Operating range 100 mm, PNP, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M8 4-pin connector
In Stock
$111.16
per unit
Applications: Sensors & I/O
Technical Data
| Connection type | M8, 4-pin |
| Detection method | BGS Diffused (Line Array Light) |
| Sensing range | 100 mm |
| Light source | Red LED |
| Spot size | 6 × 55 mm @ 100 mm |
| Output type | PNP |
| Output status | L.O / D.O |
| Switching frequency | 400 Hz |
| Supply voltage | 10 … 30 V DC |
| IP rating | IP67 |
| Housing material | PC + PBT |
| Connection | Connector |
| Anti-ambient light | ≤ 10000 lux |
| Load current | ≤ 100 mA |
| Ambient temperature | -25 … +55 ℃ |
